Spring Cloud Stream with RabbitMQ: Message-Driven Microservices

In this tutorial, we will introduce you to Spring Cloud Stream , which is a framework for building message-driven microservice applications that are connected by messaging brokers such as RabbitMQ, Apache Kafka, etc.

RabbitMQ Tutorial :

Install RabbitMQ on Windows
Install RabbitMQ using Docker on Windows
Spring Boot RabbitMQ Example
Spring Boot + RabbitMQ + Error Handling Example
Spring Cloud Stream + RabbitMQ Example
Spring Boot + Pivotal Cloud Foundry (PCF) + RabbitMQ Example
RabbitMQ Interview Questions

Note : The full source code for Spring Cloud Stream with RabbitMQ example can be downloaded at the end of this article.

Spring Cloud Stream builds on Spring Boot to develop stand-alone, production-grade Spring applications and uses Spring Integration to connect to message brokers.

In this example, will be using RabbitMQ as a message broker to communicate between microservices. Let's review some basic concept of broker.

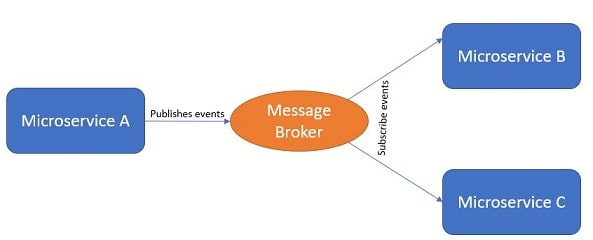

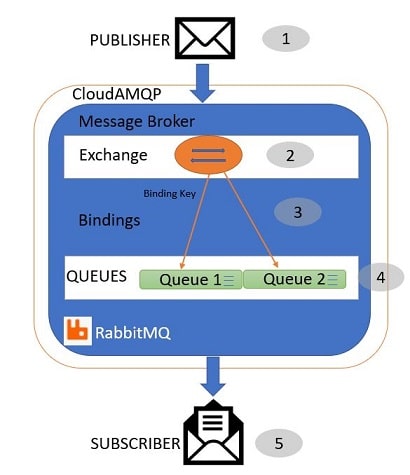

How messaging works in microservices

In microservices architecture, we may need to communicate between different microservices, so rather than using HTTP, we can can use RabbitMQ as message broker for communication. In th above diagram, Microservice A publishes it's event to Message Broker, from which Subscribers(Microservice B and C) can scribe the events.

RabbitMQ is an open source, message broker. RabbitMQ uses Advanced Message Queuing Protocol (AMQP). Its an open standard layer used to communicates date across network by means of byte stream.

Now let's start with example

RabbitMQ Setup

You can setup RabbitMQ at local and test this example.
In this example will use free cloud based rabbitMQ provided by Cloudamqp

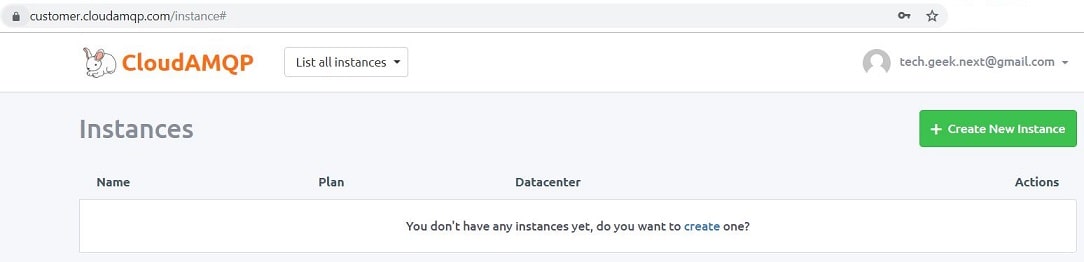

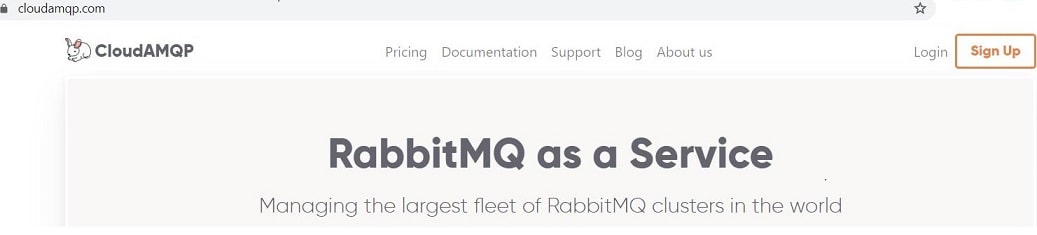

Do Signup

Create New Instance

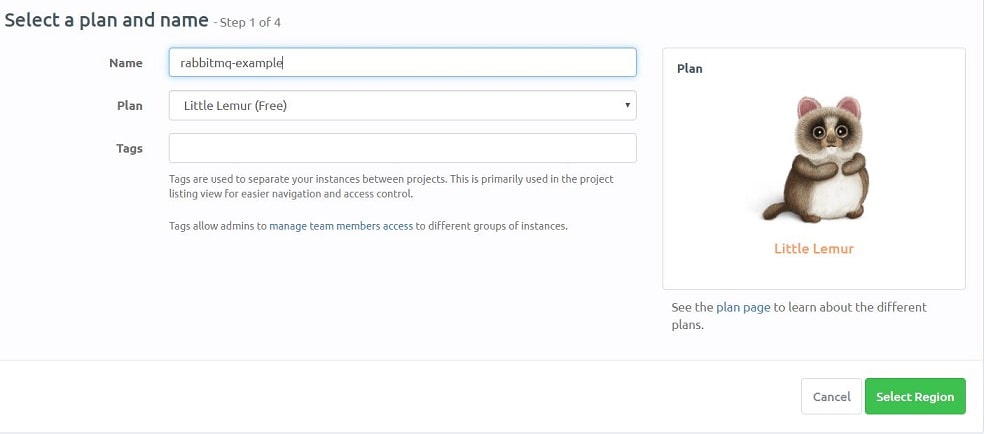

Provide Name and click on Select Region.

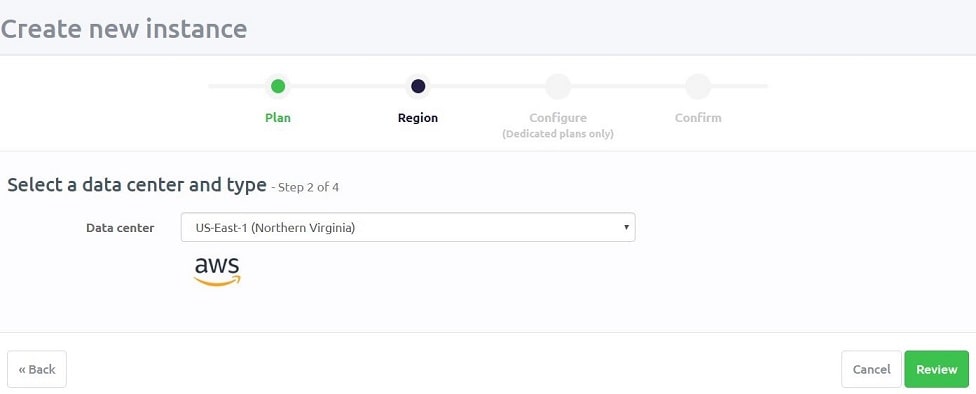

Select Data Center and click on Review.

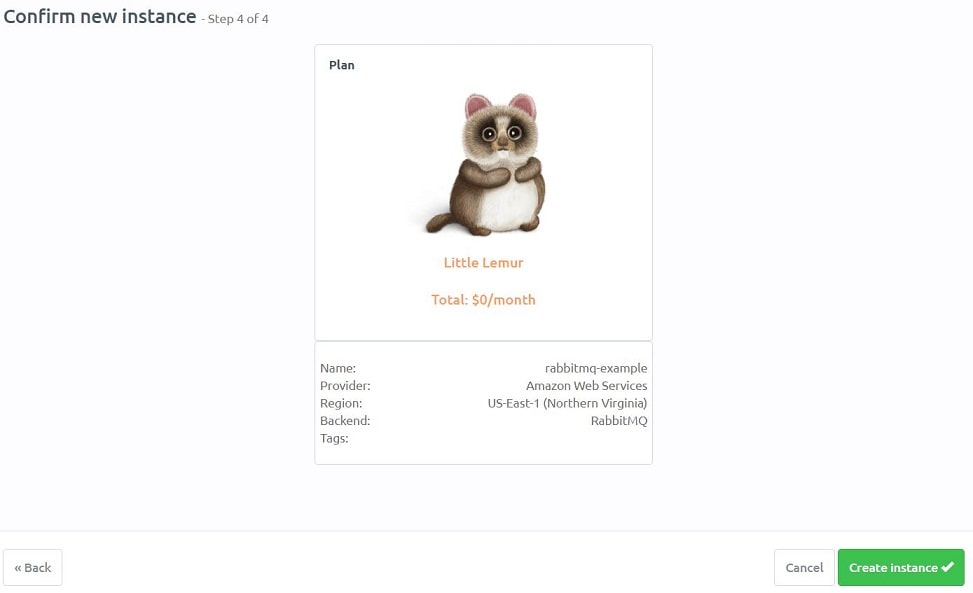

Click on create instance.

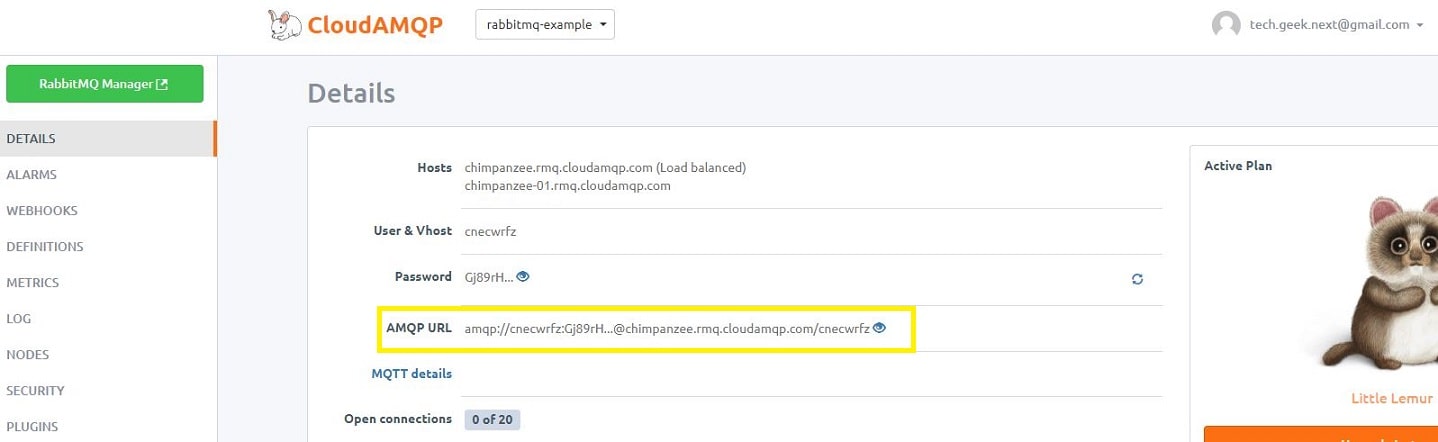

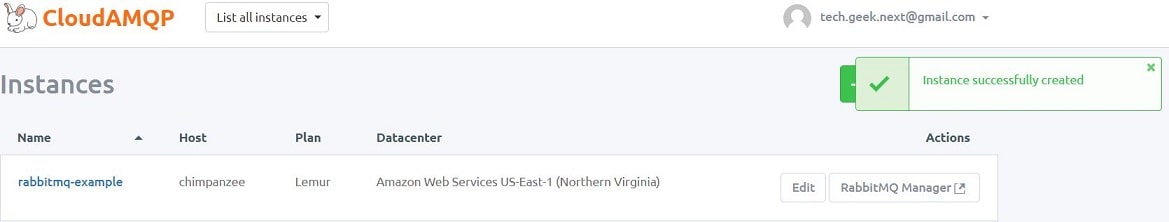

Instance would be created successfully.

Project Setup

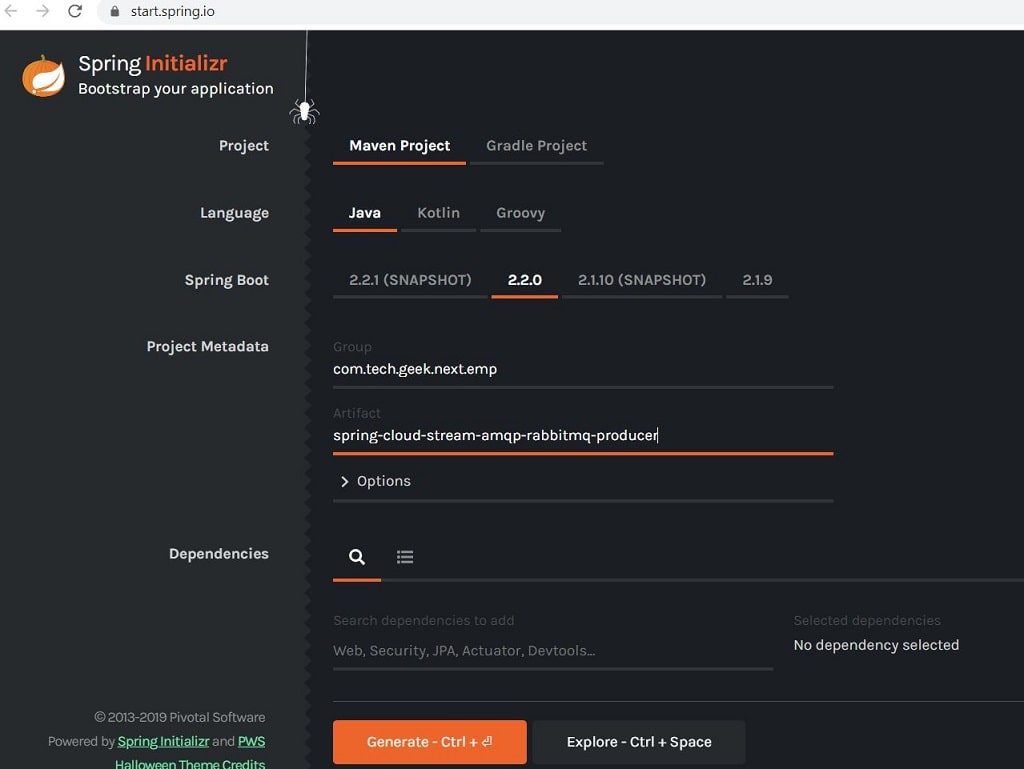

Create Producer Spring Boot Project from Spring Initializr

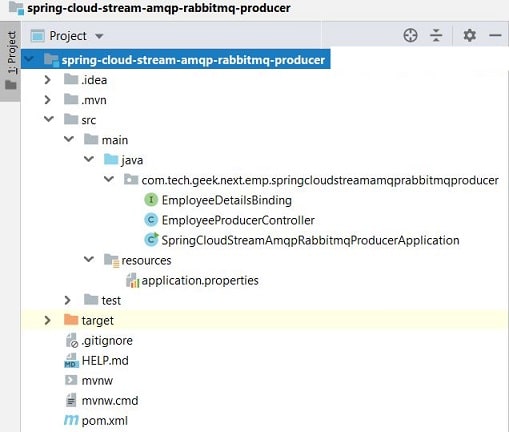

Producer Project Structure

Add below dependencies in pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.5.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.tech.geek.next.emp</groupId>
	<artifactId>spring-cloud-stream-amqp-rabbitmq-producer</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>spring-cloud-stream-amqp-rabbitmq-producer</name>
	<description>Demo project for Spring Boot Producer</description>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-stream</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-stream-rabbit</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-stream-test-support</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Create Message Channel

Let's create interface to create the message channel.

package com.tech.geek.next.emp.springcloudstreamamqprabbitmqproducer;

import org.springframework.cloud.stream.annotation.Output;
import org.springframework.messaging.MessageChannel;

public interface EmployeeBinding {
    @Output("empChannel")
    MessageChannel publishMessage();
}

Create Controller

package com.tech.geek.next.emp.springcloudstreamamqprabbitmqproducer;

import org.springframework.messaging.MessageChannel;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class EmployeeProducerController {
    private MessageChannel messageChannel;

    public EmployeeProducerController(EmployeeBinding empBinding) {
        messageChannel = empBinding.publishMessage();
    }

    @GetMapping("/publish/{msg}")
    public void publish(@PathVariable String msg) {
        this.messageChannel.send(MessageBuilder.withPayload(msg)
                .build());
    }
}

Producer Main Application

Add @EnableBinding to enable rabbitmq binding.

package com.tech.geek.next.emp.springcloudstreamamqprabbitmqproducer;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.stream.annotation.EnableBinding;


@EnableBinding(EmployeeBinding.class)
@SpringBootApplication
public class SpringCloudStreamAmqpRabbitmqProducerApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringCloudStreamAmqpRabbitmqProducerApplication.class, args);
	}
}

application.properties

Add below properties to tell Cloud AMQP to connect to defined url. Use below url from details as given below:

spring.rabbitmq.addresses=amqp://cnecwrfz@chimpanzee.rmq.cloudamqp.com/cnecwrfz
spring.cloud.stream.bindings.empChannel.destination = publishMessage
server.port=8080

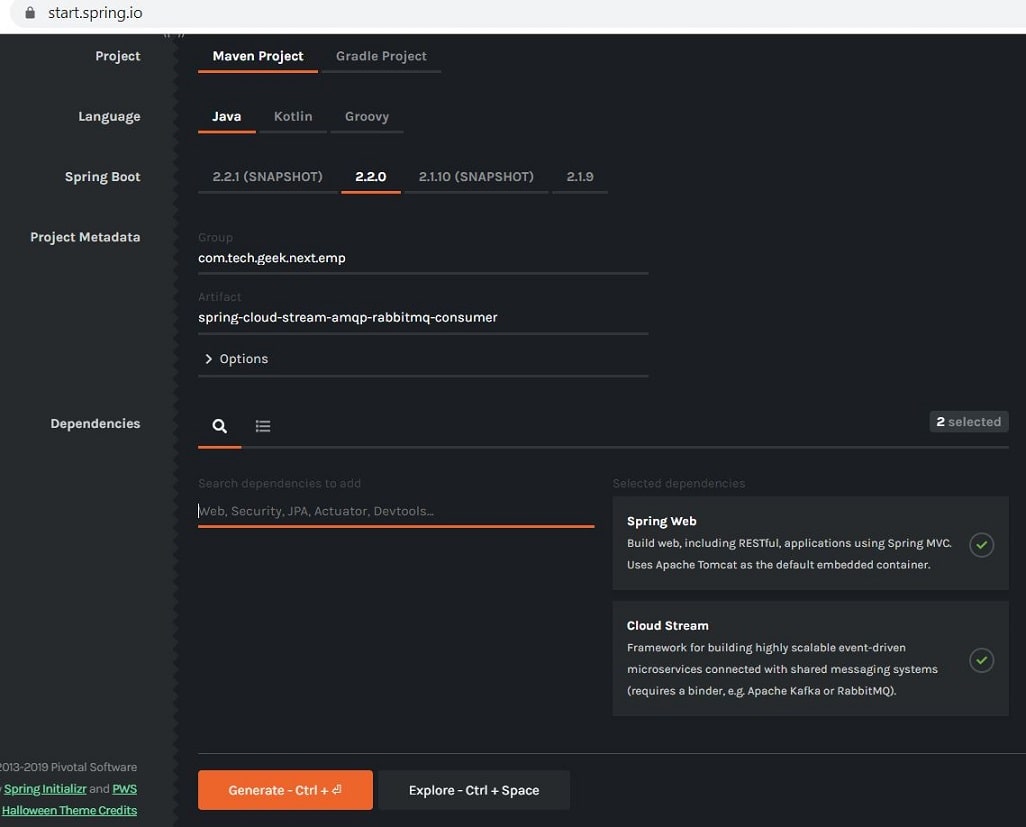

Create Consumer Spring Boot Project from Spring Initializr

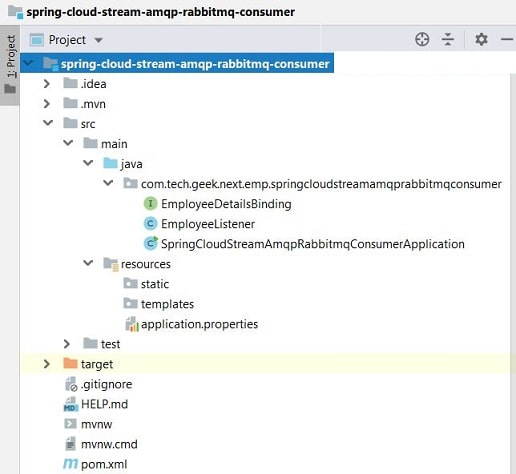

Consumer Project Structure

Add below dependencies in pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.5.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.tech.geek.next.emp</groupId>
	<artifactId>spring-cloud-stream-amqp-rabbitmq-consumer</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>spring-cloud-stream-amqp-rabbitmq-consumer</name>
	<description>Demo project for Spring Boot Consumer</description>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.SR1</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-stream</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-stream-rabbit</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-stream-test-support</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
		</repository>
	</repositories>

</project>

Create Binding

package com.tech.geek.next.emp.springcloudstreamamqprabbitmqconsumer;

import org.springframework.cloud.stream.annotation.Input;
import org.springframework.messaging.SubscribableChannel;

public interface EmployeeBinding {
    String EMP_CHANNEL = "empChannel";

    @Input(EMP_CHANNEL)
    SubscribableChannel empMsg();
}

Create Message Listener

package com.tech.geek.next.emp.springcloudstreamamqprabbitmqconsumer;

import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.cloud.stream.annotation.StreamListener;

@EnableBinding(EmployeeBinding.class)
public class EmployeeListener {
    @StreamListener(target = EmployeeBinding.EMP_CHANNEL)
    public void processEmpNameChannel(String msg) {
        System.out.println(msg);
    }
}

application.properties

Add below properties to tell Cloud AMQP to connect to defined url.

spring.rabbitmq.addresses=amqp://cnecwrfz@chimpanzee.rmq.cloudamqp.com/cnecwrfz
spring.cloud.stream.bindings.empChannel.destination = publishMessage
server.port=8080

Testing

Start Producer, you can see the producer logs:


  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.1.5.RELEASE)

2019-10-31 16:02:19.140  INFO 16212 --- [           main] oudStreamAmqpRabbitmqProducerApplication : Starting SpringCloudStreamAmqpRabbitmqProducerApplication
2019-10-31 16:02:21.233  INFO 16212 --- [           main] trationDelegate$BeanPostProcessorChecker : Bean 'mbeanServer' of type [com.sun.jmx.mbeanserver.JmxMBeanServer] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
2019-10-31 16:02:22.216  INFO 16212 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
2019-10-31 16:02:22.281  INFO 16212 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2019-10-31 16:02:22.282  INFO 16212 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.19]
2019-10-31 16:02:22.508  INFO 16212 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2019-10-31 16:02:22.508  INFO 16212 --- [           main] o.s.web.context.ContextLoader            : Root WebApplicationContext: initialization completed in 3254 ms
2019-10-31 16:02:23.900  INFO 16212 --- [           main] o.s.s.concurrent.ThreadPoolTaskExecutor  : Initializing ExecutorService 'applicationTaskExecutor'
2019-10-31 16:02:24.721  INFO 16212 --- [           main] o.s.s.c.ThreadPoolTaskScheduler          : Initializing ExecutorService 'taskScheduler'
2019-10-31 16:02:25.053  INFO 16212 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageChannel empChannel
2019-10-31 16:02:25.191  INFO 16212 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageChannel errorChannel
2019-10-31 16:02:25.274  INFO 16212 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageChannel nullChannel
2019-10-31 16:02:25.312  INFO 16212 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageHandler errorLogger
2019-10-31 16:02:25.375  INFO 16212 --- [           main] o.s.i.endpoint.EventDrivenConsumer       : Adding {logging-channel-adapter:_org.springframework.integration.errorLogger} as a subscriber to the 'errorChannel' channel
2019-10-31 16:02:25.376  INFO 16212 --- [           main] o.s.i.channel.PublishSubscribeChannel    : Channel 'application.errorChannel' has 1 subscriber(s).
2019-10-31 16:02:25.376  INFO 16212 --- [           main] o.s.i.endpoint.EventDrivenConsumer       : started _org.springframework.integration.errorLogger
2019-10-31 16:02:25.778  INFO 16212 --- [           main] o.s.a.r.c.CachingConnectionFactory       : Attempting to connect to: [chimpanzee.rmq.cloudamqp.com:5672]
2019-10-31 16:02:28.081  INFO 16212 --- [           main] o.s.a.r.c.CachingConnectionFactory       : Created new connection: rabbitConnectionFactory#11dfd79:0/SimpleConnection@18af6fa [delegate=amqp://cnecwrfz@54.17.199.170:5672/cnecwrfz, localPort= 53402]
2019-10-31 16:02:28.752  INFO 16212 --- [           main] o.s.c.s.m.DirectWithAttributesChannel    : Channel 'application.empChannel' has 1 subscriber(s).
2019-10-31 16:02:28.826  INFO 16212 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8080 (http) with context path ''
2019-10-31 16:02:28.830  INFO 16212 --- [           main] oudStreamAmqpRabbitmqProducerApplication : Started SpringCloudStreamAmqpRabbitmqProducerApplication in 10.574 seconds (JVM running for 22.928)
2019-10-31 16:03:18.024  INFO 16212 --- [nio-8080-exec-1] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring DispatcherServlet 'dispatcherServlet'
2019-10-31 16:03:18.024  INFO 16212 --- [nio-8080-exec-1] o.s.web.servlet.DispatcherServlet        : Initializing Servlet 'dispatcherServlet'
2019-10-31 16:03:18.044  INFO 16212 --- [nio-8080-exec-1] o.s.web.servlet.DispatcherServlet        : Completed initialization in 16 ms
2019-10-31 16:03:18.142  INFO 16212 --- [nio-8080-exec-1] o.s.a.r.c.CachingConnectionFactory       : Attempting to connect to: [chimpanzee.rmq.cloudamqp.com:5672]
2019-10-31 16:03:19.710  INFO 16212 --- [nio-8080-exec-1] o.s.a.r.c.CachingConnectionFactory       : Created new connection: rabbitConnectionFactory.publisher#1a39ed9:0/SimpleConnection@1ff4b7e [delegate=amqp://cnecwrfz@54.17.199.170:5672/cnecwrfz, localPort= 53419]

Let's start the Consumer, publish the message by using producer endpoint localhost:8080/publish/Welcome techgeeknext , and see the Consumer logs.
If you see the logs, Producer produces the message and Consumer consumes the message Welcome techgeeknext

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.1.5.RELEASE)


2019-10-31 16:02:41.099  INFO 19424 --- [           main] trationDelegate$BeanPostProcessorChecker : Bean 'org.springframework.boot.autoconfigure.jmx.JmxAutoConfiguration' of type [org.springframework.boot.autoconfigure.jmx.JmxAutoConfiguration$$EnhancerBySpringCGLIB$$49062570] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
2019-10-31 16:02:41.126  INFO 19424 --- [           main] trationDelegate$BeanPostProcessorChecker : Bean 'mbeanServer' of type [com.sun.jmx.mbeanserver.JmxMBeanServer] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
2019-10-31 16:02:42.033  INFO 19424 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 9090 (http)
2019-10-31 16:02:42.081  INFO 19424 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2019-10-31 16:02:42.082  INFO 19424 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.19]
2019-10-31 16:02:42.271  INFO 19424 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2019-10-31 16:02:42.272  INFO 19424 --- [           main] o.s.web.context.ContextLoader            : Root WebApplicationContext: initialization completed in 3090 ms
2019-10-31 16:02:43.514  INFO 19424 --- [           main] o.s.s.concurrent.ThreadPoolTaskExecutor  : Initializing ExecutorService 'applicationTaskExecutor'
2019-10-31 16:02:44.226  INFO 19424 --- [           main] o.s.s.c.ThreadPoolTaskScheduler          : Initializing ExecutorService 'taskScheduler'
2019-10-31 16:02:44.567  INFO 19424 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageChannel empChannel
2019-10-31 16:02:44.714  INFO 19424 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageChannel nullChannel
2019-10-31 16:02:44.752  INFO 19424 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageChannel errorChannel
2019-10-31 16:02:44.813  INFO 19424 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageHandler errorLogger
2019-10-31 16:02:44.880  INFO 19424 --- [           main] o.s.c.s.m.DirectWithAttributesChannel    : Channel 'application.empChannel' has 1 subscriber(s).
2019-10-31 16:02:44.893  INFO 19424 --- [           main] o.s.i.endpoint.EventDrivenConsumer       : Adding {logging-channel-adapter:_org.springframework.integration.errorLogger} as a subscriber to the 'errorChannel' channel
2019-10-31 16:02:44.894  INFO 19424 --- [           main] o.s.i.channel.PublishSubscribeChannel    : Channel 'application.errorChannel' has 1 subscriber(s).
2019-10-31 16:02:44.894  INFO 19424 --- [           main] o.s.i.endpoint.EventDrivenConsumer       : started _org.springframework.integration.errorLogger
2019-10-31 16:02:45.198  INFO 19424 --- [           main] c.s.b.r.p.RabbitExchangeQueueProvisioner : declaring queue for inbound: publishMessage.anonymous.62k5RQVATBGYxVtWf1uJiw, bound to: publishMessage
2019-10-31 16:02:45.205  INFO 19424 --- [           main] o.s.a.r.c.CachingConnectionFactory       : Attempting to connect to: [chimpanzee.rmq.cloudamqp.com:5672]
2019-10-31 16:02:46.540  INFO 19424 --- [           main] o.s.a.r.c.CachingConnectionFactory       : Created new connection: rabbitConnectionFactory#17163a7:0/SimpleConnection@145dc8f [delegate=amqp://cnecwrfz@54.17.199.170:5672/cnecwrfz, localPort= 53410]
2019-10-31 16:02:47.682  INFO 19424 --- [           main] o.s.i.monitor.IntegrationMBeanExporter   : Registering MessageChannel publishMessage.anonymous.62k5RQVATBGYxVtWf1uJiw.errors
2019-10-31 16:02:47.864  INFO 19424 --- [           main] o.s.c.stream.binder.BinderErrorChannel   : Channel 'application.publishMessage.anonymous.62k5RQVATBGYxVtWf1uJiw.errors' has 1 subscriber(s).
2019-10-31 16:02:47.864  INFO 19424 --- [           main] o.s.c.stream.binder.BinderErrorChannel   : Channel 'application.publishMessage.anonymous.62k5RQVATBGYxVtWf1uJiw.errors' has 2 subscriber(s).
2019-10-31 16:02:48.786  INFO 19424 --- [           main] o.s.i.a.i.AmqpInboundChannelAdapter      : started inbound.publishMessage.anonymous.62k5RQVATBGYxVtWf1uJiw
2019-10-31 16:02:48.866  INFO 19424 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 9090 (http) with context path ''
2019-10-31 16:02:48.866  INFO 19424 --- [           main] oudStreamAmqpRabbitmqConsumerApplication : Started SpringCloudStreamAmqpRabbitmqConsumerApplication in 10.557 seconds (JVM running for 21.898)
Welcome techgeeknext

In this tutorial, we have see how microservices communicates with each other by means of RabbitMQ message broker. We can also use other message bokers like Kafka etc by changing configuration properties.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Cloud Stream with RabbitMQ example

Spring Cloud Stream with RabbitMQ: Message-Driven Microservices

How messaging works in microservices

RabbitMQ Setup

Project Setup

Producer Project Structure

Create Message Channel

Create Controller

Producer Main Application

application.properties

Consumer Project Structure

Create Binding

Create Message Listener

application.properties

Testing

Download Source Code

Recommendation for Top Popular Post :
