Spring Boot WebClient Example (2024)

Overview

In this tutorial we will be looking at example using Spring Boot WebFlux WebClient.

In this tutorial, we'll create spring boot application with WebClient for communication between two services.

We will utilize our previous example Spring Boot WebFlux + MongoDB Crud Example to call the crud services using WebClient.

What is WebClient?

Spring Framework 5 has introduces WebClient (spring-webflux module), a part of the new Web Reactive framework that helps construct reactive and non-blocking web applications, is part of the Spring MVC project and allows communication with HTTP servers while adhering to RESTful standards.

Prior to Spring 5, RestTemplate was the main approach for client-side HTTP communications, which was part of the Spring MVC project.

Since the release of Spring Framework 5, WebClient has been the recommended for client-side HTTP communications.

Let's create Spring Boot Project from Spring Initializer site https://start.spring.io/

Project Structure

Maven Dependency

The spring-boot-starter-webflux module must be added in the pom.xml to use the WebClient API.

<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.3.RELEASE</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.techgeeknext</groupId>
    <artifactId>spring-boot-webclient-example</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>spring-boot-webclient-example</name>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
        </dependency>
		<dependency>
			<groupId>org.projectreactor</groupId>
			<artifactId>reactor-spring</artifactId>
            <version>1.0.1.RELEASE</version>
		</dependency>

        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

</project>

Application Properties

The default memory limit for buffering data in memory in Spring WebFlux is configured to 256KB. If this limit is exceeded in any way, the DataBufferLimitException error will occur.

org.springframework.core.io.buffer.DataBufferLimitException: Exceeded limit on max bytes to buffer

Configure the spring.codec.max-in-memory-size property in the application.properties to reset the memory limit.

server.port=8081
logging.level.org.springframework=DEBUG
server.servlet.context-path=/employee-management
spring.codec.max-in-memory-size=3MB

logging.level.reactor.netty.http.client.HttpClient=DEBUG
logging.level.org.springframework.boot.autoconfigure=ERROR

WebFlux Configuration

Create WebFlux Configuration Class.

• The HttpClient can be used to define connection timeout periods, read, and write timeouts.

• Create and configure WebClient instance

  We can use any one of the ways listed below to create WebClient.

  1. WebClient.create() API

     create() is a factory method to create instance of WebClient and then further we can provide url to it.

     WebClient webClientObj = WebClient.create();


  2. WebClient.create(url) API

     The create() method is an overloaded method that accepts a base URL (calling service url) for requests as an optional parameter.

     WebClient webClientObj = WebClient.create("http://localhost:8080");


  3. WebClient.Builder API

     WebClient.Builder() is the builder method to create WebClient instance. This is reusable, as we can create the instance at one place can be used to instantiate multiple WebClient instance where ever required.

     @Bean
     public WebClient getWebClient()
     {
     return WebClient.builder()
            .baseUrl("http://localhost:8080")
     	   .defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE)
     	   .build();
     }

  4. WebClient.Builder() + Filter for basic authentication

     If authentication is required while calling an upstream service, it can be accomplished by using WebClient.Builder() with a filter.

     import static org.springframework.web.reactive.function.client.ExchangeFilterFunctions.basicAuthentication;

     WebClient client = WebClient.builder()
     		.filter(basicAuthentication("user", "password"))
     		.build();


As per above configuration , create a class to create and configure WebClient instance which will call other service ( Spring Boot WebFlux + MongoDB Crud Example) running on http://localhost:8080 from our service using WebClient.

package com.techgeeknext.config;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.web.reactive.config.EnableWebFlux;
import org.springframework.web.reactive.config.WebFluxConfigurer;
import org.springframework.web.reactive.function.client.WebClient;

@Configuration
@EnableWebFlux
public class WebFluxConfig implements WebFluxConfigurer
{
	Logger logger = LoggerFactory.getLogger(WebFluxConfig.class);

	@Bean
	public WebClient getWebClient()
	{
		return WebClient.builder()
		        .baseUrl("http://localhost:8080")
		        .defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE)
		        .build();
	}
}

Retrieve or Exchange data

Sending request and receiving a response, can be achieved by using retrieve() or exchange() are two methods that can be used to retrieve or exchange data. The retrieve() method makes an HTTP request and retrieves the response body directly. ClientResponse with the response status and headers is returned by the exchange() method. The response body can be obtained from the ClientResponse instance.

package com.techgeeknext.service;

import com.techgeeknext.model.Employee;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.web.reactive.function.client.WebClient;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

import java.time.Duration;

@Service
public class EmployeeService implements IEmployeeService
{
	@Autowired
	WebClient webClient;

	public Flux<Employee> findAll()

	{
		return webClient.get()
			.uri("/get/all")
			.retrieve()
			.bodyToFlux(Employee.class)
			.timeout(Duration.ofMillis(10_000));
	}

	public Mono<Employee> create(Employee empl)
	{
		return webClient.post()
				.uri("/create/emp")
				.body(Mono.just(empl), Employee.class)
				.retrieve()
				.bodyToMono(Employee.class)
				.timeout(Duration.ofMillis(10_000));
	}

	public Mono<Employee> findById(Integer id)
	{
		return webClient.get()
				.uri("/get/" + id)
				.retrieve()
				.bodyToMono(Employee.class);
	}

	public Mono<Employee> update(Employee e)
	{
		return webClient.put()
				.uri("/update/emp/" + e.getId())
				.body(Mono.just(e), Employee.class)
				.retrieve()
				.bodyToMono(Employee.class);
	}

	public Mono<Void> delete(Integer id)
	{
		return webClient.delete()
				.uri("/delete/" +id)
				.retrieve()
				.bodyToMono(Void.class);
	}

}

1. If we simply care about the response body entity, the retrieve() method and then bodyToFlux() and bodyToMono() methods will suffice.
2. Otherwise, use the method exchange(), which returns a ClientResponse with all of the response elements, including status, headers, and the response body.
3. Please keep in mind that the bodyToMono() and bodyToFlux() methods require a response body of the specified class type. These methods throw WebClientException if the response status code is 4xx (client error) or 5xx (server error), i.e. there is no response body.
4. While using exchange(), ensure that resources are freed and to avoid potential issues with HTTP connection pooling, we must always use any of the body or toEntity methods of ClientResponse. If no response content is expected, use bodyToMono(Void.class).

Rest Controller

Create Rest Controller, which will in turn call the rest end points of other microservice ( Spring Boot WebFlux + MongoDB Crud Example) using WebClient.

package com.techgeeknext.controller;

import com.techgeeknext.model.Employee;
import com.techgeeknext.service.EmployeeService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.web.bind.annotation.*;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

@RestController
@RequestMapping("/employees")
public class EmployeeController
{
    @Autowired
    private EmployeeService employeeService;

    @GetMapping(produces = MediaType.TEXT_EVENT_STREAM_VALUE)
    @ResponseStatus(HttpStatus.OK)
    //using Flux for collection of employees
    public Flux<Employee> findAll() {
    	return employeeService.findAll();
    }

    @GetMapping(value = "/{id}")
    //using Mono for single employee
    public Mono<Employee> findById(@PathVariable("id") Integer id) {
        return employeeService.findById(id);
    }

    @PostMapping
    @ResponseStatus(HttpStatus.CREATED)
    //using Mono for single employee
    public Mono<Employee> create(@RequestBody Employee e) {
    	return employeeService.create(e);
    }

    @PutMapping(value = "/{id}")
    @ResponseStatus(HttpStatus.OK)
    //using Mono for single employee
    public Mono<Employee> update(@RequestBody Employee e, @PathVariable("id") Integer id) {
    	e.setId(id);
        return employeeService.update(e);
    }

    @DeleteMapping(value = "/{id}")
    @ResponseStatus(HttpStatus.OK)
    // using Mono<Void> when no response content is expected
    public Mono<Void> delete(@PathVariable("id") Integer id) {
    	return employeeService.delete(id);
    }
}

Test WebClient

To test WebClient communication with asynchronous (WebFlux) rest api example, perform below steps:

1. Download and Run Spring Boot WebFlux + MongoDB Crud Example. It will provide WebFlux rest api's for tesing WebClient Communication.
2. Run Spring Boot + WebClient Example (can Download Source given below) by using mvn spring-boot run command.
3. Open Postman or any Browser and use employees rest endpoint http://localhost:8081/employees to get all the employees.

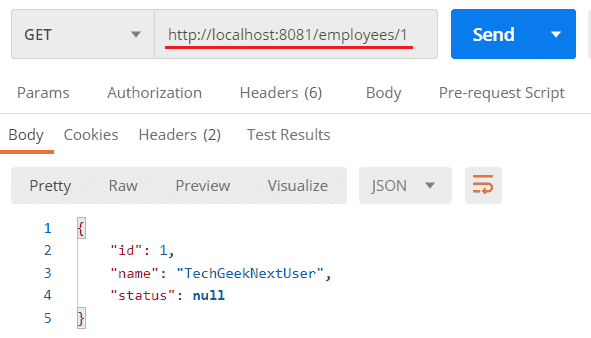

4. You can also verify other rest endpoints such as get employee by id http://localhost:8081/employees/1.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot WebClient Example
