Spring Boot JWT Example

In this tutorial, we will create a Spring Boot Application that uses JWT authentication to protect an exposed REST API. We will Configure JWT's Spring Security. Use the REST POST API to map / authenticate which user will receive a valid JSON Web Token. And then the user can only access the api / welcome if it has a valid token. We've seen what's JWT, when and how to use it in a previous tutorial.

Spring Boot Rest Authentication with JWT (JSON Web Token) Token Flow

Spring Boot JWT Structure
  • Customers sign in by submitting their credentials to the provider.
  • Upon successful authentication, it generates JWT containing user details and privileges for accessing the services and sets the JWT expiry date in payload.
  • The server signs and encrypts the JWT if necessary and sends it to the client as a response with credentials to the initial request.
  • Based on the expiration set by the server, the customer/client stores the JWT for a restricted or infinite amount of time.
  • The client sends this JWT token in the header for all subsequent requests.
  • The client authenticates the user with this token. So we don't need the client to send the user name and password to the server during each authentication process, but only once the server sends the client a JWT.
In next tutorial, we have integrated Angular 8 with Spring Boot JWT Authentication.
Take a look at our suggested posts:
Spring Boot Session Management using JDBC Example
Spring Boot Session Management using Redis Example
Spring Boot - Transaction Management
Spring Boot - Hazelcast
Java 15
Java 14
Java 8 Interview Questions and Answers

Create Simple Spring boot with /greeting rest end point

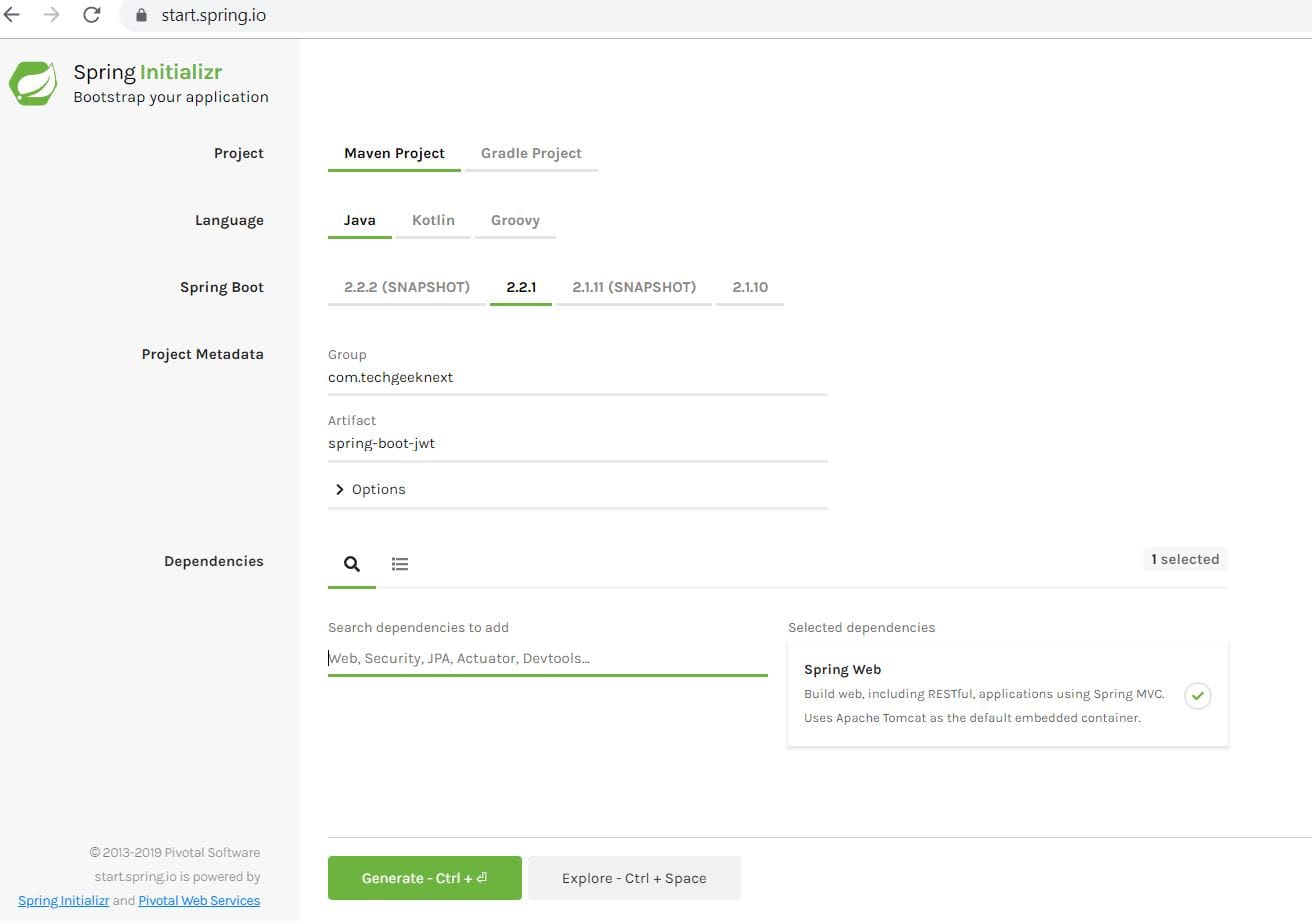

Let's Create Spring Boot Project from Spring Initializer site https://start.spring.io/ Create Spring Boot Project

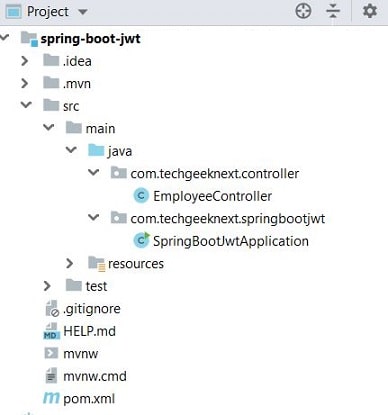

Project Structure

Project Structure

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.1.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>spring-boot-jwt</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>spring-boot-jwt</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Create Controller with /greeting Rest api

package com.techgeeknext.controller;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class EmployeeController {
    @RequestMapping({ "/greeting" })
    public String welcomePage() {
        return "Welcome!";
    }
}

Main Class

package com.techgeeknext.springbootjwt;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootJwtApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootJwtApplication.class, args);
	}

}

Test /greeting GET Api without JWT

Compile and the run this project by using endpoint localhost:8080/greeting. GET without JWT

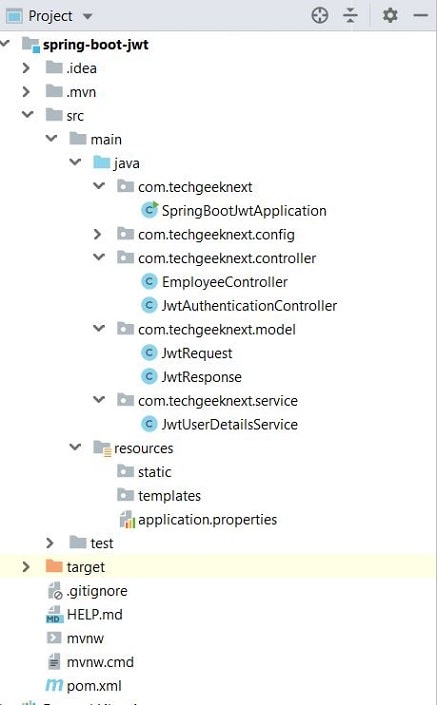

Project Structure

Now will add spring security and JWT into our project. Spring Security JWT Project Structure

pom.xml:

Add Spring Security and JWT dependencies as given below.
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.1.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>spring-boot-jwt</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>spring-boot-jwt</name>
	<description>Demo project for Spring Security with JWT</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>
		<dependency>
			<groupId>io.jsonwebtoken</groupId>
			<artifactId>jjwt</artifactId>
			<version>0.9.1</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

application.properties

Provide secret key. As seen in previous JWT introduction, we provided the secret key used by the hashing algorithm . JWT combined this secret key with header and payload data.
jwt.secret=techgeeknext

Spring Security and JWT Configuration

We will be performing 2 operation to configure spring security and to generate JWT and to validate it.

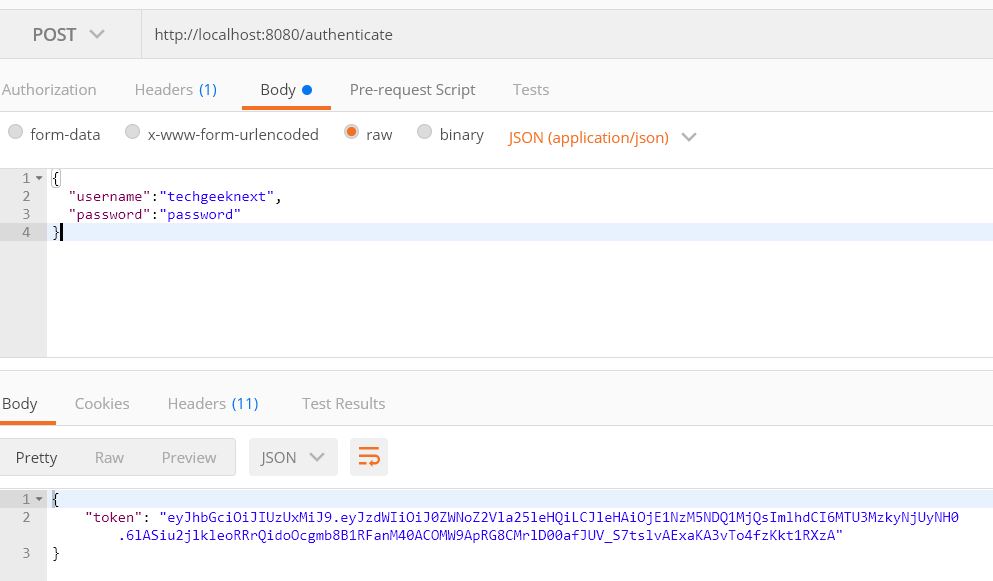

  • Generate JWT : Use /authenticate POST endpoint by using username and password to generate a JSON Web Token (JWT).

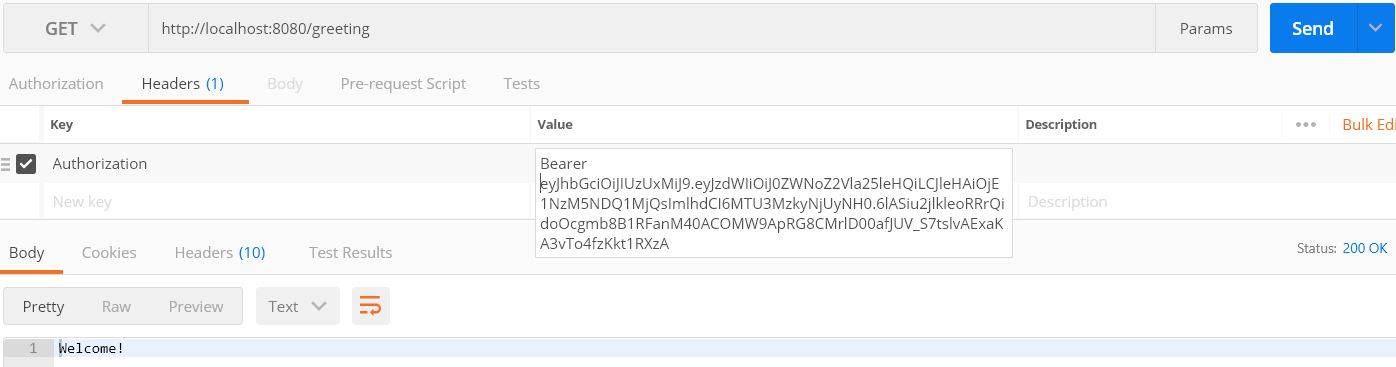

  • Validate JWT : User can use /greeting GET endpoint by using valid JSON Web Token (JWT).

JWT Token Utility

We will define the utilities method for generating and validating JWT token.
package com.techgeeknext.config;

import java.io.Serializable;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;
import java.util.function.Function;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.stereotype.Component;

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;

@Component
public class JwtTokenUtil implements Serializable {

	private static final long serialVersionUID = -2550185165626007488L;

	public static final long JWT_TOKEN_VALIDITY = 5*60*60;

	@Value("${jwt.secret}")
	private String secret;

	public String getUsernameFromToken(String token) {
		return getClaimFromToken(token, Claims::getSubject);
	}

	public Date getIssuedAtDateFromToken(String token) {
		return getClaimFromToken(token, Claims::getIssuedAt);
	}

	public Date getExpirationDateFromToken(String token) {
		return getClaimFromToken(token, Claims::getExpiration);
	}

	public <T> T getClaimFromToken(String token, Function<Claims, T> claimsResolver) {
		final Claims claims = getAllClaimsFromToken(token);
		return claimsResolver.apply(claims);
	}

	private Claims getAllClaimsFromToken(String token) {
		return Jwts.parser().setSigningKey(secret).parseClaimsJws(token).getBody();
	}

	private Boolean isTokenExpired(String token) {
		final Date expiration = getExpirationDateFromToken(token);
		return expiration.before(new Date());
	}

	private Boolean ignoreTokenExpiration(String token) {
		// here you specify tokens, for that the expiration is ignored
		return false;
	}

	public String generateToken(UserDetails userDetails) {
		Map<String, Object> claims = new HashMap<>();
		return doGenerateToken(claims, userDetails.getUsername());
	}

	private String doGenerateToken(Map<String, Object> claims, String subject) {

		return Jwts.builder().setClaims(claims).setSubject(subject).setIssuedAt(new Date(System.currentTimeMillis()))
				.setExpiration(new Date(System.currentTimeMillis() + JWT_TOKEN_VALIDITY*1000)).signWith(SignatureAlgorithm.HS512, secret).compact();
	}

	public Boolean canTokenBeRefreshed(String token) {
		return (!isTokenExpired(token) || ignoreTokenExpiration(token));
	}

	public Boolean validateToken(String token, UserDetails userDetails) {
		final String username = getUsernameFromToken(token);
		return (username.equals(userDetails.getUsername()) && !isTokenExpired(token));
	}
}

Load Username and Password

We used UserDetailsService interface from org.springframework.security.core.userdetails.UserDetailsService package provided by the spring security. UserDetailsService interface is used in order to search the username, password and GrantedAuthorities for given user.
This interface provide only one method called loadUserByUsername. Authentication Manager calls this method for getting the user details from the database when authenticating the user details provided by the user.
NOTE: In this tutorial will be using hard coded username password. Use BCrypt password, can use any online tool to BCrypt the password. In Next coming tutorial will integrate with MySql database to get username and password.
package com.techgeeknext.service;

import java.util.ArrayList;

import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

@Service
public class JwtUserDetailsService implements UserDetailsService {

	@Override
	public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
		if ("techgeeknext".equals(username)) {
			return new User("techgeeknext", "$2a$10$slYQmyNdGzTn7ZLBXBChFOC9f6kFjAqPhccnP6DxlWXx2lPk1C3G6",
					new ArrayList<>());
		} else {
			throw new UsernameNotFoundException("User not found with username: " + username);
		}
	}

}

Jwt Authentication Controller

We will use /authenticate POST API to authenticate username and password. Username and Password will passed in body and using Authentication Manager will authenticate the credentials. If credentials are valid, JWT token would be created by JWTTokenUtil and provided to client.
package com.techgeeknext.controller;

import java.util.Objects;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.DisabledException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.techgeeknext.config.JwtTokenUtil;
import com.techgeeknext.model.JwtRequest;
import com.techgeeknext.model.JwtResponse;

@RestController
@CrossOrigin
public class JwtAuthenticationController {

	@Autowired
	private AuthenticationManager authenticationManager;

	@Autowired
	private JwtTokenUtil jwtTokenUtil;

	@Autowired
	private UserDetailsService jwtInMemoryUserDetailsService;

	@RequestMapping(value = "/authenticate", method = RequestMethod.POST)
	public ResponseEntity<?> generateAuthenticationToken(@RequestBody JwtRequest authenticationRequest)
			throws Exception {

		authenticate(authenticationRequest.getUsername(), authenticationRequest.getPassword());

		final UserDetails userDetails = jwtInMemoryUserDetailsService
				.loadUserByUsername(authenticationRequest.getUsername());

		final String token = jwtTokenUtil.generateToken(userDetails);

		return ResponseEntity.ok(new JwtResponse(token));
	}

	private void authenticate(String username, String password) throws Exception {
		Objects.requireNonNull(username);
		Objects.requireNonNull(password);
		try {
			authenticationManager.authenticate(new UsernamePasswordAuthenticationToken(username, password));
		} catch (DisabledException e) {
			throw new Exception("USER_DISABLED", e);
		} catch (BadCredentialsException e) {
			throw new Exception("INVALID_CREDENTIALS", e);
		}
	}
}

Request Object

JwtRequest object used as a request object for getting username and password from the client.
package com.techgeeknext.model;

import java.io.Serializable;

public class JwtRequest implements Serializable {

	private static final long serialVersionUID = 5926468583005150707L;

	private String username;
	private String password;

	//default constructor for JSON Parsing
	public JwtRequest()
	{
	}

	public JwtRequest(String username, String password) {
		this.setUsername(username);
		this.setPassword(password);
	}

	public String getUsername() {
		return this.username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return this.password;
	}

	public void setPassword(String password) {
		this.password = password;
	}
}

Response Object

JwtResponse used to create the response object send to the client.
package com.techgeeknext.model;

import java.io.Serializable;

public class JwtResponse implements Serializable {

	private static final long serialVersionUID = -8091879091924046844L;
	private final String jwttoken;

	public JwtResponse(String jwttoken) {
		this.jwttoken = jwttoken;
	}

	public String getToken() {
		return this.jwttoken;
	}
}

JWT Request Filter

JwtRequestFilter class is executed for any incoming requests and validate JWT from the request and sets it in the context to indicate that logged in user is authenticated.
package com.techgeeknext.config;

import java.io.IOException;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.stereotype.Component;
import org.springframework.web.filter.OncePerRequestFilter;

import com.techgeeknext.service.JwtUserDetailsService;

import io.jsonwebtoken.ExpiredJwtException;

@Component
public class JwtRequestFilter extends OncePerRequestFilter {

	@Autowired
	private JwtUserDetailsService jwtUserDetailsService;

	@Autowired
	private JwtTokenUtil jwtTokenUtil;

	@Override
	protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
			throws ServletException, IOException {

		final String requestTokenHeader = request.getHeader("Authorization");

		String username = null;
		String jwtToken = null;
		// JWT Token is in the form "Bearer token". Remove Bearer word and get only the Token
		if (requestTokenHeader != null && requestTokenHeader.startsWith("Bearer ")) {
			jwtToken = requestTokenHeader.substring(7);
			try {
				username = jwtTokenUtil.getUsernameFromToken(jwtToken);
			} catch (IllegalArgumentException e) {
				System.out.println("Unable to get JWT Token");
			} catch (ExpiredJwtException e) {
				System.out.println("JWT Token has expired");
			}
		} else {
			logger.warn("JWT Token does not begin with Bearer String");
		}

		//Once we get the token validate it.
		if (username != null && SecurityContextHolder.getContext().getAuthentication() == null) {

			UserDetails userDetails = this.jwtUserDetailsService.loadUserByUsername(username);

			// if token is valid configure Spring Security to manually set authentication
			if (jwtTokenUtil.validateToken(jwtToken, userDetails)) {

				UsernamePasswordAuthenticationToken usernamePasswordAuthenticationToken = new UsernamePasswordAuthenticationToken(
						userDetails, null, userDetails.getAuthorities());
				usernamePasswordAuthenticationToken
						.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
				// After setting the Authentication in the context, we specify
				// that the current user is authenticated. So it passes the Spring Security Configurations successfully.
				SecurityContextHolder.getContext().setAuthentication(usernamePasswordAuthenticationToken);
			}
		}
		chain.doFilter(request, response);
	}

}

JwtAuthenticationEntryPoint

This class rejects unauthenticated request and send error code 401
package com.techgeeknext.config;

import java.io.IOException;
import java.io.Serializable;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.stereotype.Component;

@Component
public class JwtAuthenticationEntryPoint implements AuthenticationEntryPoint, Serializable {

	private static final long serialVersionUID = -7858869558953243875L;

	@Override
	public void commence(HttpServletRequest request, HttpServletResponse response,
			AuthenticationException authException) throws IOException {

		response.sendError(HttpServletResponse.SC_UNAUTHORIZED, "Unauthorized");
	}
}

WebSecurityConfig

This class extends the WebSecurityConfigurerAdapter that enables both WebSecurity and HTTPSecurity to be customized.
package com.techgeeknext.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

	@Autowired
	private JwtAuthenticationEntryPoint jwtAuthenticationEntryPoint;

	@Autowired
	private UserDetailsService jwtUserDetailsService;

	@Autowired
	private JwtRequestFilter jwtRequestFilter;

	@Autowired
	public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
		// configure AuthenticationManager so that it knows from where to load
		// user for matching credentials
		// Use BCryptPasswordEncoder
		auth.userDetailsService(jwtUserDetailsService).passwordEncoder(passwordEncoder());
	}

	@Bean
	public PasswordEncoder passwordEncoder() {
		return new BCryptPasswordEncoder();
	}

	@Bean
	@Override
	public AuthenticationManager authenticationManagerBean() throws Exception {
		return super.authenticationManagerBean();
	}

	@Override
	protected void configure(HttpSecurity httpSecurity) throws Exception {
		// We don't need CSRF for this example
		httpSecurity.csrf().disable()
				// dont authenticate this particular request
				.authorizeRequests().antMatchers("/authenticate").permitAll().
				// all other requests need to be authenticated
				anyRequest().authenticated().and().
				// make sure we use stateless session; session won't be used to
				// store user's state.
				exceptionHandling().authenticationEntryPoint(jwtAuthenticationEntryPoint).and().sessionManagement()
				.sessionCreationPolicy(SessionCreationPolicy.STATELESS);

		// Add a filter to validate the tokens with every request
		httpSecurity.addFilterBefore(jwtRequestFilter, UsernamePasswordAuthenticationFilter.class);
	}
}

Testing

Now finally will test this by using below steps:
  • Generate JSON Web Token (JWT)
    • Create POST request (localhost:8080/authenticate) and provide username and password in request body as given below. JWT Request Response
  • Validate JSON Web Token (JWT)
    • Now use GET request localhost:8080/greeting with above generated JWT Token in header request. JWT Validate Request

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot Security with JWT Token







Recommendation for Top Popular Post :

Java 19
Spring Boot - Session Management
Spring Boot - Transaction Management
Spring Boot - Security Tutorial
Java Lombok Tutorial
PCF Tutorial
Spring Cloud Tutorial
RxJS Tutorial
Spring Boot - JWT Example
Spring Boot Complete CRUD example
Spring Boot - RabbitMQ Example
Angular Spring Boot Example
Spring Boot JPA Rest
Java Z Garbage Collector (ZGC)
Java 8 Programming Interview Questions
Angular 9 features
Angular - RxJS Interview Questions
RxJS switchMap
CI CD DevOps Interview Questions
Top Spring Batch Interview Questions
RxJS Higher-Order Observable Mapping
