Spring Boot + Spring Batch Listener

Overview

In this article, we'll explore how to integrate Spring Boot with Spring Batch Listener.

We will understand the concept of Listeners available as part of Spring Batch framework.

Listeners are entities that help in intercepting the execution of a Job or Step and allowing the user to do certain functionality.

In this example, will read the content of the airport data CSV file and write it to the output text file, while also printing the logs from our listeners using Spring Batch Listener.

Take a look at our suggested posts:
Apache Storm Tutorial
Spring Boot - Transaction Management
Spring Boot - JWT Authentication Example
Spring Boot - JWT + Angular 8 Authentication Example
Spring Boot - JWT + MYSQL Authentication Example
Spring Boot - Session Management using Redis
OAuth2.0 Tutorial
Spring Boot - Hazelcast
Spring Boot - JPA + REST + MYSQL Example
Java 15
Java 14
Java 8 Interview Questions and Answers
Angular 8 Spring Boot Example

Now, let's create Spring Batch Listener with Spring Boot Application.

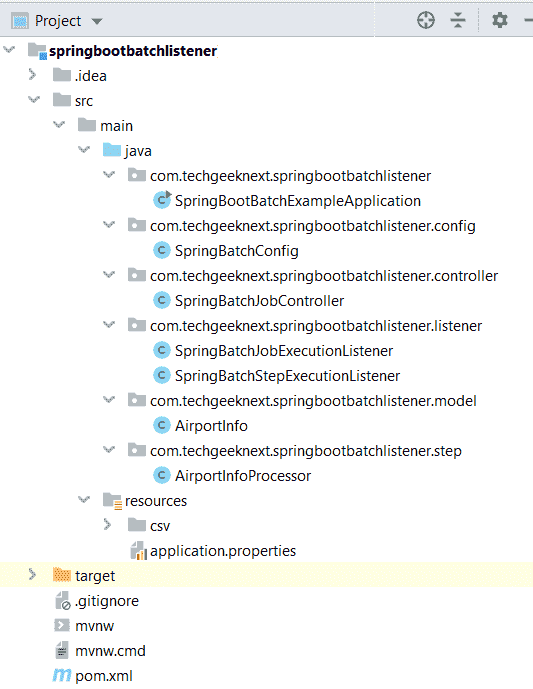

Project Structure

Spring Batch Listener Project Structure

Create Spring Boot Maven project

Add the spring-boot-starter-batch and h2 embedded database dependency in pom.xml.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.0.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>springbootbatchlistener</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>springbootbatchlistener</name>
	<description>Spring Boot - Spring Batch Listener Example</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-batch</artifactId>
		</dependency>

		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-rest</artifactId>
		</dependency>

		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
			<scope>runtime</scope>
		</dependency>

		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.14</version>
			<scope>runtime</scope>
		</dependency>

		<dependency>
			<groupId>org.springframework.batch</groupId>
			<artifactId>spring-batch-core</artifactId>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

JobExecutionListener

JobExecutionListener offers interceptions and life-cycle methods for Spring Batch Jobs. There are two methods beforeJob() and afterJob(), which, as the names indicate, allow us to do whatever we want before the execution of a job begins and after the execution of the job finishes.

package com.techgeeknext.springbootbatchlistener.listener;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.batch.core.BatchStatus;
import org.springframework.batch.core.JobExecution;
import org.springframework.batch.core.JobExecutionListener;

public class SpringBatchJobExecutionListener implements JobExecutionListener {

    Logger logger = LoggerFactory.getLogger(SpringBatchJobExecutionListener.class);

    public void beforeJob(JobExecution jobExecution) {

        logger.info("AirportJobExecutionListener - beforeJob started.");
    }

    public void afterJob(JobExecution jobExecution) {
        if (jobExecution.getStatus() == BatchStatus.COMPLETED) {
            logger.info("AirportJobExecutionListener - - afterJob completed successfully");
        } else if (jobExecution.getStatus() == BatchStatus.FAILED) {
            logger.info("AirportJobExecutionListener - afterJob failed.");
        }
    }
}

StepExecutionListener

StepExecutionListener offers interceptions and life-cycle methods for Spring Batch Steps. There are two methods beforeJob() and afterJob(), which, as the names indicate, allow us to do whatever we want before the execution of a step begins and after the execution of the step finishes. The afterStep() method returns an ExitStatus, which indicates whether or not the step execution was successful.

package com.techgeeknext.springbootbatchlistener.listener;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.batch.core.ExitStatus;
import org.springframework.batch.core.StepExecution;
import org.springframework.batch.core.StepExecutionListener;

public class SpringBatchStepExecutionListener implements StepExecutionListener {

    Logger logger = LoggerFactory.getLogger(SpringBatchStepExecutionListener.class);

    @Override
    public void beforeStep(StepExecution stepExecution)
    {
        logger.info("AirportStepListener - called before step.");
    }

    @Override
    public ExitStatus afterStep(StepExecution stepExecution) {
        logger.info("AirportStepListener - called after step.");
        //ExitStatus indicate that step has completed
        return ExitStatus.COMPLETED;
    }
}

Configure Listeners

In this class will configure SpringBatchJobExecutionListener in job, SpringBatchStepExecutionListener in step.

To configure your job, use @Configuration and @EnableBatchProcessing annotations, which adds several important beans to help jobs and saves you a lot of time.

The airportInfoJob() method defines the job, and the airportInfoStep() defines a single step. Jobs are created from steps, where each step can have a reader, a processor, and a writer.

package com.techgeeknext.springbootbatchlistener.config;

import com.techgeeknext.springbootbatchlistener.listener.SpringBatchJobExecutionListener;
import com.techgeeknext.springbootbatchlistener.listener.SpringBatchStepExecutionListener;
import com.techgeeknext.springbootbatchlistener.model.AirportInfo;
import com.techgeeknext.springbootbatchlistener.step.AirportInfoProcessor;
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.launch.support.RunIdIncrementer;
import org.springframework.batch.item.file.FlatFileItemReader;
import org.springframework.batch.item.file.FlatFileItemWriter;
import org.springframework.batch.item.file.builder.FlatFileItemReaderBuilder;
import org.springframework.batch.item.file.builder.FlatFileItemWriterBuilder;
import org.springframework.batch.item.file.transform.PassThroughLineAggregator;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.FileSystemResource;

/**
 * Spring Batch Configuration Class
 */
@Configuration
@EnableBatchProcessing
public class SpringBatchConfig {

	@Autowired
	public JobBuilderFactory jobBuilderFactory;

	@Autowired
	public StepBuilderFactory stepBuilderFactory;

	@Bean
	public Job airportInfoJob() {
		return jobBuilderFactory.get("airportInfoJob")
				.incrementer(new RunIdIncrementer())
				.listener(new SpringBatchJobExecutionListener())
				.flow(airportInfoStep())
                .end()
                .build();
	}

    @Bean
    public Step airportInfoStep() {
        return stepBuilderFactory.get("airportInfoStep")
                .listener(new SpringBatchStepExecutionListener())
                .<AirportInfo, String>chunk(10)
                .reader(airportInfoItemReader())
                .processor(airportInfoProcessor())
                .writer(airportInfoItemWriter())
                .faultTolerant()
                .retryLimit(3)
                .retry(Exception.class)
                .build();
    }

    @Bean
    public FlatFileItemReader<AirportInfo> airportInfoItemReader() {
        return new FlatFileItemReaderBuilder<AirportInfo>()
                .name("airportInfoItemReader")
                .resource(new ClassPathResource("csv/airports.csv"))
                .delimited()
                .names(new String[] {"code", "airport","city","state","country"})
                .targetType(AirportInfo.class)
                .build();
    }

    @Bean
    public AirportInfoProcessor airportInfoProcessor(){
	    return new AirportInfoProcessor();
    }

    @Bean
    public FlatFileItemWriter<String> airportInfoItemWriter() {
        return new FlatFileItemWriterBuilder<String>()
                .name("airportInfoItemWriter")
                .resource(new FileSystemResource(
                        "csv/airport-output.txt"))
                .lineAggregator(new PassThroughLineAggregator<>())
				.build();
    }
}

Process Data With ItemProcessor

Create AirportInfoProcessor class by implementing ItemProcessor interface and override process method to write our business logic.

We will read the content of the airport data CSV file and write it to the output file, while also printing the logs from our listeners.

package com.techgeeknext.springbootbatchlistener.step;

import com.techgeeknext.springbootbatchlistener.model.AirportInfo;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.batch.item.ItemProcessor;

import java.util.Date;

public class AirportInfoProcessor
    implements ItemProcessor<AirportInfo, String> {

  private static final Logger LOGGER =
      LoggerFactory.getLogger(AirportInfoProcessor.class);

  @Override
  public String process(AirportInfo airportInfo) throws Exception {
    System.out.println("===Airport Details===");
    String message = "Airport Code- "+airportInfo.getCode()+"  Airport Name- "
        + airportInfo.getAirport() + "  City-" + airportInfo.getCity()+"  Country- "+airportInfo.getCountry()
            +"  State- "+airportInfo.getState();
    LOGGER.info("==copied '{}' to output file", message);
    return message;
   }
}

Input CSV File

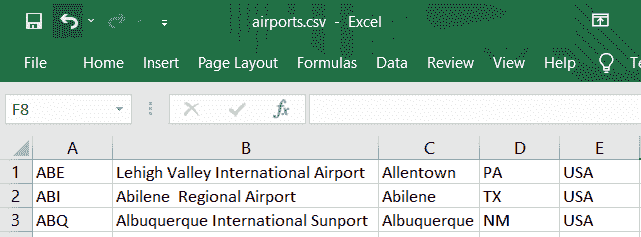

Keep input csv file () under resources/csv folder. Spring Batch Listener - Input File

Job Launcher

Create RestApi, which will call job launcher to start the job.

package com.techgeeknext.springbootbatchlistener.controller;

import org.springframework.batch.core.Job;
import org.springframework.batch.core.JobParameters;
import org.springframework.batch.core.JobParametersBuilder;
import org.springframework.batch.core.launch.JobLauncher;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class SpringBatchJobController {

    @Autowired
    JobLauncher jobLauncher;

    @Autowired
    Job airportInfoJob;

    /**
     * Method to launch the batch job to read the airport details from input csv file and write to output text file
     * @return String
     * @throws Exception
     */
    @RequestMapping("/launch/airport/job")
    public String launchJob() throws Exception {
        JobParameters jobParameters = new JobParametersBuilder().addLong("time", System.currentTimeMillis())
                .toJobParameters();
        jobLauncher.run(airportInfoJob, jobParameters);
        return "Airport Job has been invoked from TechGeekNext!!!";
    }
}

Test

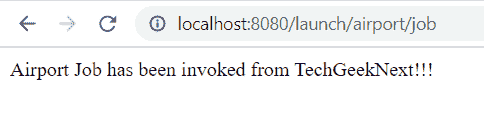

  1. Use the http://localhost:8080/launch/airport/job url, this will start the Job.
    2. Spring Batch Listener output

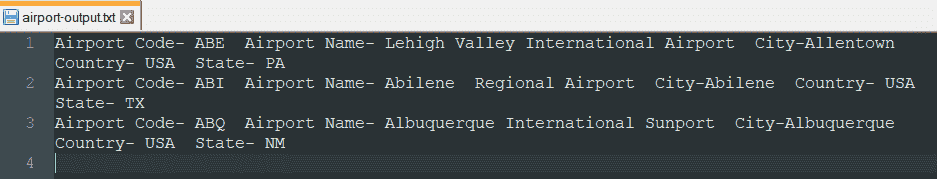

  2. Once you hit the job launcher url as above, it starts processing the configured job with steps defined. Also you can notice logs are getting printed defined in our listeners.
    3.  .   ____   _ __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot :: (v2.3.0.RELEASE)

19:14:52.465  INFO 27052 --- [main] c.t.s.SpringBootBatchExampleApplication  : Starting SpringBootBatchExampleApplication with PID 27052 (D:\springbootbatchlistener\target\classes started in D:\springbootbatchlistener)
19:14:52.466  INFO 27052 --- [main] c.t.s.SpringBootBatchExampleApplication  : No active profile set, falling back to default profiles: default
19:14:54.069  INFO 27052 --- [main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
19:14:54.082  INFO 27052 --- [main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
19:14:54.082  INFO 27052 --- [main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.35]
19:14:54.264  INFO 27052 --- [main] o.a.c.c.C.[Tomcat].[localhost].[/]: Initializing Spring embedded WebApplicationContext
19:14:54.265  INFO 27052 --- [main] o.s.web.context.ContextLoader : Root WebApplicationContext: initialization completed in 1761 ms
19:14:54.972  INFO 27052 --- [main] o.s.s.concurrent.ThreadPoolTaskExecutor  : Initializing ExecutorService 'applicationTaskExecutor'
19:14:55.156  INFO 27052 --- [main] com.zaxxer.hikari.HikariDataSource: HikariPool-1 - Starting...
19:14:55.316  INFO 27052 --- [main] com.zaxxer.hikari.HikariDataSource: HikariPool-1 - Start completed.
19:14:55.395  INFO 27052 --- [main] o.s.b.c.r.s.JobRepositoryFactoryBean     : No database type set, using meta data indicating: H2
19:14:55.414  INFO 27052 --- [main] o.s.b.c.l.support.SimpleJobLauncher: No TaskExecutor has been set, defaulting to synchronous executor.
19:14:55.594  INFO 27052 --- [main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8080 (http) with context path ''
19:14:55.602  INFO 27052 --- [main] c.t.s.SpringBootBatchExampleApplication  : Started SpringBootBatchExampleApplication in 3.532 seconds (JVM running for 3.941)
19:15:27.968  INFO 27052 --- [nio-8080-exec-1] o.a.c.c.C.[Tomcat].[localhost].[/]: Initializing Spring DispatcherServlet 'dispatcherServlet'
19:15:27.968  INFO 27052 --- [nio-8080-exec-1] o.s.web.servlet.DispatcherServlet : Initializing Servlet 'dispatcherServlet'
19:15:28.017  INFO 27052 --- [nio-8080-exec-1] o.s.web.servlet.DispatcherServlet : Completed initialization in 48 ms
19:15:28.162  INFO 27052 --- [nio-8080-exec-1] o.s.b.c.l.support.SimpleJobLauncher:
Job: [FlowJob: [name=airportInfoJob]] launched with the following parameters: [{time=1621950328051}]
19:15:28.221  INFO 27052 --- [nio-8080-exec-1] c.t.s.l.SpringBatchJobExecutionListener  :
AirportJobExecutionListener - beforeJob started.
19:15:28.246  INFO 27052 --- [nio-8080-exec-1] o.s.batch.core.job.SimpleStepHandler     :
Executing step: [airportInfoStep]
19:15:28.252  INFO 27052 --- [nio-8080-exec-1] c.t.s.l.SpringBatchStepExecutionListener :
 AirportStepListener - called before step.
===Airport Details===
19:15:28.332  INFO 27052 --- [nio-8080-exec-1] c.t.s.step.AirportInfoProcessor :
==copied 'Airport Code- ABE  Airport Name- Lehigh Valley International Airport  City-Allentown  Country- USA  State- PA' to output file
===Airport Details===
19:15:28.333  INFO 27052 --- [nio-8080-exec-1] c.t.s.step.AirportInfoProcessor :
==copied 'Airport Code- ABI  Airport Name- Abilene  Regional Airport  City-Abilene  Country- USA  State- TX' to output file
===Airport Details===
19:15:28.333  INFO 27052 --- [nio-8080-exec-1] c.t.s.step.AirportInfoProcessor :
==copied 'Airport Code- ABQ  Airport Name- Albuquerque International Sunport  City-Albuquerque  Country- USA  State- NM' to output file
19:15:28.339  INFO 27052 --- [nio-8080-exec-1] c.t.s.l.SpringBatchStepExecutionListener :
AirportStepListener - called after step.
19:15:28.339  INFO 27052 --- [nio-8080-exec-1] c.t.s.l.SpringBatchStepExecutionListener :
AirportStepListener - called after step.
19:15:28.342  INFO 27052 --- [nio-8080-exec-1] o.s.batch.core.step.AbstractStep  :
Step: [airportInfoStep] executed in 95ms
19:15:28.350  INFO 27052 --- [nio-8080-exec-1] c.t.s.l.SpringBatchJobExecutionListener  :
 AirportJobExecutionListener - - afterJob completed successfully
19:15:28.354  INFO 27052 --- [nio-8080-exec-1] o.s.b.c.l.support.SimpleJobLauncher:
Job: [FlowJob: [name=airportInfoJob]] completed with the following parameters: [{time=1621950328051}] and the following status: [COMPLETED] in 146ms
  3. Also, as stated above the airport-output.txt will be created in the root folder (springbootbatch\csv).
    4. Spring Batch Listener output file

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot + Spring Batch Listener Example







Recommendation for Top Popular Post :

Spring Boot - Session Management
Spring Boot - Transaction Management
Spring Boot - Security Tutorial
Java Lombok Tutorial
PCF Tutorial
Spring Cloud Tutorial
RxJS Tutorial
Spring Boot - JWT Example
Spring Boot Complete CRUD example
Spring Boot - RabbitMQ Example
Angular Spring Boot Example
Spring Boot JPA Rest
Java Z Garbage Collector (ZGC)
Java 8 Programming Interview Questions
Angular - RxJS Interview Questions
RxJS switchMap
CI CD DevOps Interview Questions
Top Spring Batch Interview Questions
RxJS Higher-Order Observable Mapping
