Spring Boot Redis Example (2024)

In this tutorial, we'll implement Redis crud operations in Spring Boot application.

Q: What is Redis?
Ans:

Redis is a distributed in-memory key-value database, cache, and message broker with optional durability. Redis supports different kinds of abstract data structures, such as strings, lists, maps, sets, sorted sets, HyperLogLogs, bitmaps, streams, and spatial indexes. Redis stands for REmote DIctionary Server (Redis).

Q: What is the maximum size of key in redis?
Ans:

According to the redis official docs, the maximum size of key in redis is 512MB.

Install Redis

Follow the steps given here to install Redis Client/Server to test this application.

Create Spring Boot application

Create Spring Boot application from Spring Initializr.

Project Structure

Add Dependencies

Add spring-boot-starter-data-redis dependency in pom.xml.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.4.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>SpringBootRedis</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>SpringBootRedis</name>
	<description>SpringBoot Redis database Example</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-redis</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>redis.clients</groupId>
			<artifactId>jedis</artifactId>
			<version>3.3.0</version>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Redis Configuration

1. To obtain Redis connections, Spring Data provides a variety of connection factories. We'll utilise JedisConnectionFactory as our connection factory in this example.
2. Jedis is a lightweight and easy-to-use Java Redis client.
3. RedisTemplate is provided by Spring Data for performing Redis operations.
4. We're going to use the Jedis client, and we're going to define a connectionFactory.
5. The jedisConnectionFactory was then used to create a RedisTemplate. This method can be used to query data stored in a custom repository.
6. The main class for interacting with Redis data is RedisTemplate. It handles automatic serialization and deserialization between the provided objects and Redis binary data. RedisTemplate utilises Java serialization by default.
7. By default, JedisConnectionFactory uses the host name localhost and the port 6379.
8. By default, RedisTemplate does not support transactions. To make it work, we must call its method setEnableTransactionSupport and set to true.

package com.techgeeknext.config;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisStandaloneConfiguration;
import org.springframework.data.redis.connection.jedis.JedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.repository.configuration.EnableRedisRepositories;
import org.springframework.data.redis.serializer.JdkSerializationRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

@Configuration
@EnableRedisRepositories
public class RedisConfig {

    @Value("${redis.host}")
    private String redisHostName;

    @Value("${redis.port}")
    private Integer redisPort;

    @Bean
    public JedisConnectionFactory jedisConnectionFactory() {
        RedisStandaloneConfiguration redisConfig = new RedisStandaloneConfiguration();
        redisConfig.setHostName(redisHostName);
        redisConfig.setPort(redisPort);
        return new JedisConnectionFactory(redisConfig);
    }

    @Bean
    public RedisTemplate<String, Object> redisTemplate() {
        RedisTemplate<String, Object> redisTemplate = new RedisTemplate<>();
        redisTemplate.setConnectionFactory(jedisConnectionFactory());
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashKeySerializer(new JdkSerializationRedisSerializer());
        redisTemplate.setValueSerializer(new JdkSerializationRedisSerializer());
        redisTemplate.setEnableTransactionSupport(true);
        redisTemplate.afterPropertiesSet();
        return redisTemplate;
    }

}

Application Properties

Add redis default host and port in application.properties.

redis.host=localhost
redis.port=6379

Entity

1. At the minimum, every domain entity must be annotated with and have @Id annotated properties.
2. The actual key required to persist the hash is created by the @RedisHash and @Id properties.
3. We can utilize secondary indices like @Index in addition to identifier properties annotated with @Id.
4. @Index is a Redis index that can be used to speed up property-based searches.

package com.techgeeknext.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.data.annotation.Id;
import org.springframework.data.redis.core.RedisHash;
import org.springframework.data.redis.core.index.Indexed;

import java.io.Serializable;

@Data
@AllArgsConstructor
@NoArgsConstructor
@RedisHash("Menu")
public class Menu implements Serializable {
    @Id
    private int id;

     //Used to speed up the property based search
    //@Index
    //private int redisExtId;

    private String item;
    private long price;
}

Repository for Redis operations

1. Redis Hashes are quite a useful way to store items in memory because they can hold a n number of key-value pairs and are built to consume less memory.
2. We can manage redis hash values using the HashOperations helper class.

   HashOperations hashOperations = redisTemplate.opsForHash();

3. HashOperations have put(), get(), entries(), values, and delete etc. as basic hash map operations to operate with redis hash key values.

package com.techgeeknext.repository;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.HashOperations;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Repository;

import com.techgeeknext.entity.Menu;

import java.util.List;

@Repository
public class MenuRepo {

    public static final String HASH_KEY_NAME = "MENU-ITEM";
    @Autowired
    private RedisTemplate redisTemplate;


    public Menu save(Menu menu){
        // SETS menu object in MENU-ITEM hashmap at menuId key
        redisTemplate.opsForHash().put(HASH_KEY_NAME,menu.getId(),menu);
        return menu;
    }

    public List<Menu> findAll(){
        // GET all Menu values
        return redisTemplate.opsForHash().values(HASH_KEY_NAME);
    }

    public Menu findItemById(int id){
        // GET menu object from MENU-ITEM hashmap by menuId key
        return (Menu) redisTemplate.opsForHash().get(HASH_KEY_NAME,id);
    }


    public String deleteMenu(int id){
        // DELETE the hashkey by menuId from MENU-ITEM hashmap
        redisTemplate.opsForHash().delete(HASH_KEY_NAME,id);
        return "Menu deleted successfully !!";
    }
}

Controller to test Spring Boot Redis

We will use the CRUD rest endpoints and call the HashOperations to test the redis data.

package com.techgeeknext.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import com.techgeeknext.entity.Menu;
import com.techgeeknext.repository.MenuRepo;

@RestController
@RequestMapping("/menu")
public class MenuController {

    @Autowired
    private MenuRepo menuRepo;

    @PostMapping
    public Menu save(@RequestBody Menu menuDetails) {
        return menuRepo.save(menuDetails);
    }

    @GetMapping
    public List<Menu> getMenus() {
        return menuRepo.findAll();
    }

    @GetMapping("/{id}")
    public Menu findMenuItemById(@PathVariable int id) {
        return menuRepo.findItemById(id);
    }


    @DeleteMapping("/{id}")
    public String deleteMenuById(@PathVariable int id)   {
    	return menuRepo.deleteMenu(id);
	}

}

Test Spring Boot Redis Example

1. Install Redis

   Follow the steps given here to install Redis Client/Server to test this application.

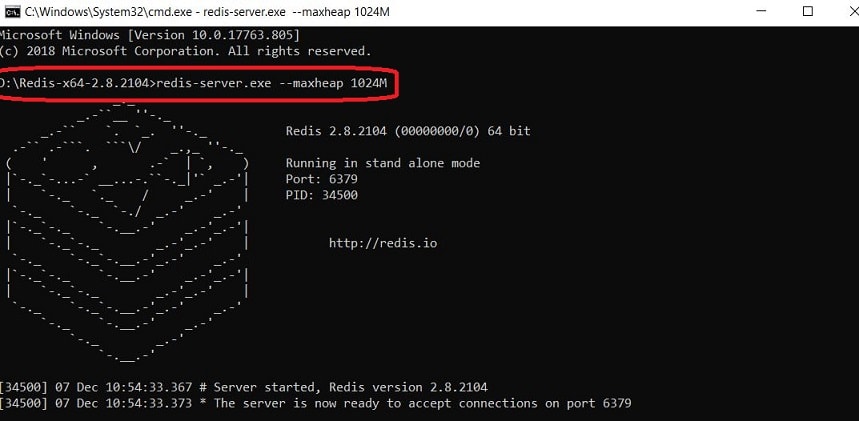

2. Start the Redis Server using command redis-server.exe --maxheap 1024M.
3. Start the Spring Boot Application by running spring-boot:run or by running main class.

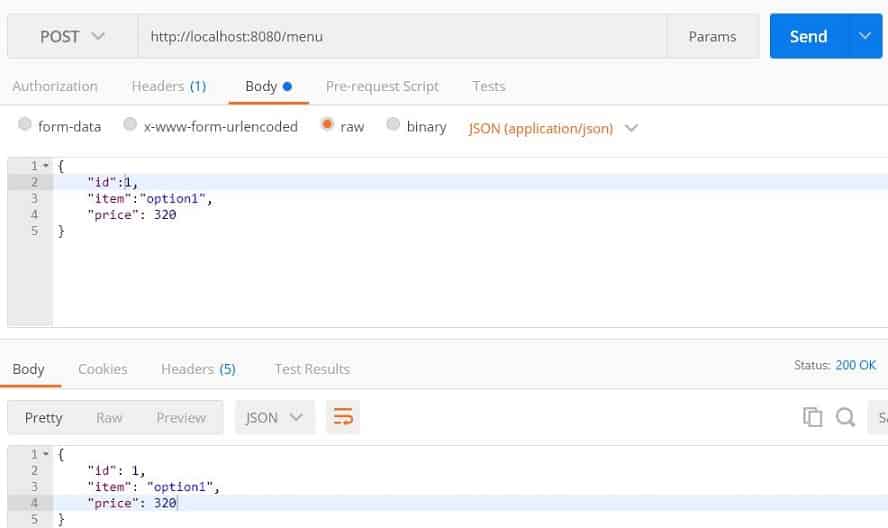

4. POST data to Redis

   Use POST method with end point http://localhost:8080/menu to save menu data to the redis database.

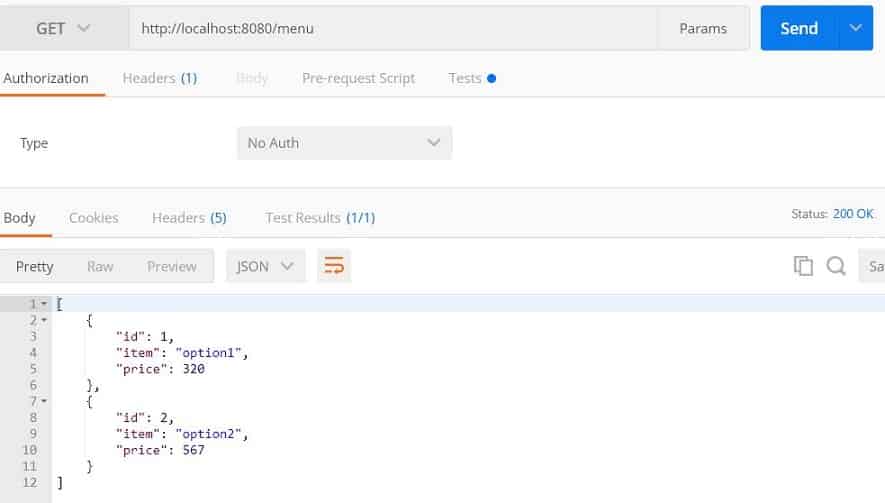

5. GET All data from Redis

   Use GET method with end point http://localhost:8080/menu to retrieve all menu data from the redis database.

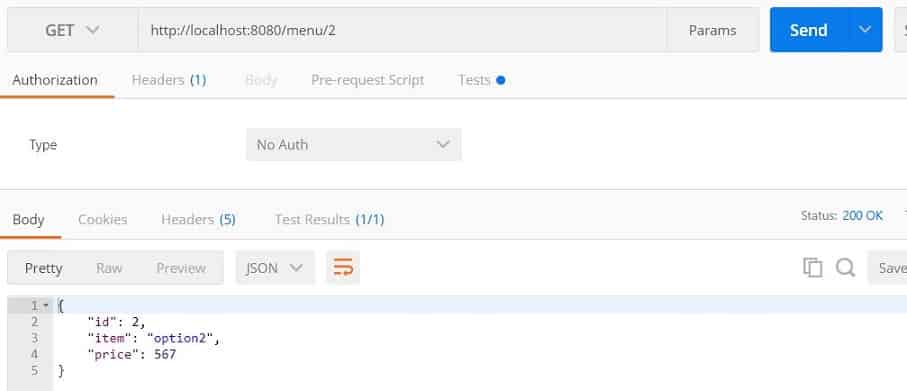

6. GET data by Id from Redis

   Use GET method with end point http://localhost:8080/menu/2 to fetch menu data from the redis database by menu Id.

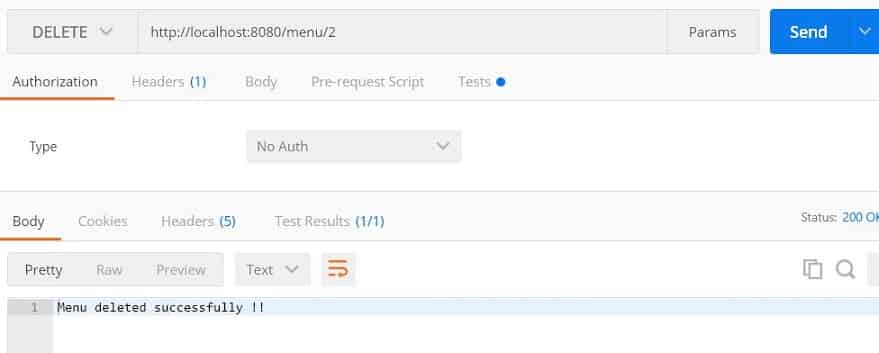

7. DELETE data by Id from Redis

   Use DELETE method with end point http://localhost:8080/menu/2 to delete menu data from the redis database by menu Id.

Download Source Code

The full source code for this article can be found below.

1. Download it here - Spring Boot Redis Example
