Spring Boot Jasper Report Example (2024)

Overview

In this tutorial, we'll create spring boot application with Jasper Report and generate PDF report.

Install the Jasper Studio to create the report view and utilize in the spring boot application.

Q: What is JasperReports?
Ans:

JasperReports is a Java reporting tool that can output to a wide range of destinations, including the screen, a printer, PDF, HTML, Microsoft Excel, RTF, ODT, comma-separated values, and XML files. It can be used to generate dynamic content in Java-enabled applications, such as Java EE or web applications.

Let's create Spring Boot Project from Spring Initializer site https://start.spring.io/

Project Structure

Maven Dependency

The jasperreports dependency must be added in the pom.xml to use the Jasper Report features.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.4.0</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>Spring-Boot-Jasper-Report</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>Spring-Boot-Jasper-Report</name>
	<description>Spring Boot Jasper Report Example</description>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>net.sf.jasperreports</groupId>
			<artifactId>jasperreports</artifactId>
			<version>6.16.0</version>
		</dependency>

	</dependencies>

	<repositories>
		<!-- JasperSoft, they modified a standard library for their own special needs -->
		<repository>
			<id>jaspersoft-third-party</id>
			<url>https://jaspersoft.jfrog.io/jaspersoft/third-party-ce-artifacts/</url>
		</repository>
	</repositories>

	<pluginRepositories>
		<!-- JasperSoft, they modified a standard library for their own special needs -->
		<pluginRepository>
			<id>jaspersoft-third-party</id>
			<url>https://jaspersoft.jfrog.io/jaspersoft/third-party-ce-artifacts/</url>
		</pluginRepository>
	</pluginRepositories>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Jasper Report Template

Copy the created employees-details.jrxml report in resource folder of spring boot application from the Jasper Studio Report .

Model

Create Employee Model to map the data with employees-details.jrxml report.

package com.techgeeknext.model;

public class Employee {

	private int id;
	private String name;
	private String role;
	private String address;

	public Employee(int id, String name, String role, String address) {
		this.id = id;
		this.name = name;
		this.role = role;
		this.address = address;
	}

	public int getId() {
		return id;
	}

	public void setId(int id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getRole() {
		return role;
	}

	public void setRole(String role) {
		this.role = role;
	}

	public String getAddress() {
		return address;
	}

	public void setAddress(String address) {
		this.address = address;
	}

}

Rest Controller

Create a rest endpoint to generate the report and pass in the dynamic values that the report requires. The report will be generated in PDF format. We can generate the report in the format specified by our requirements.

package com.techgeeknext.controller;

import com.techgeeknext.model.Employee;
import net.sf.jasperreports.engine.*;
import net.sf.jasperreports.engine.data.JRBeanCollectionDataSource;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.util.ResourceUtils;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

@RestController
public class EmployeeController {

	@GetMapping("/employee/records/report")
	public ResponseEntity<byte[]> getEmployeeRecordReport() {

		try {
			// create employee data
			Employee emp1 = new Employee(1, "AAA", "BBB", "A city");
			Employee emp2 = new Employee(2, "XXX", "ZZZ", "B city");

			List<Employee> empLst = new ArrayList<Employee>();
			empLst.add(emp1);
			empLst.add(emp2);

			//dynamic parameters required for report
			Map<String, Object> empParams = new HashMap<String, Object>();
			empParams.put("CompanyName", "TechGeekNext");
			empParams.put("employeeData", new JRBeanCollectionDataSource(empLst));

			JasperPrint empReport =
					JasperFillManager.fillReport
				   (
							JasperCompileManager.compileReport(
							ResourceUtils.getFile("classpath:employees-details.jrxml")
									.getAbsolutePath()) // path of the jasper report
							, empParams // dynamic parameters
							, new JREmptyDataSource()
					);

			HttpHeaders headers = new HttpHeaders();
			//set the PDF format
			headers.setContentType(MediaType.APPLICATION_PDF);
			headers.setContentDispositionFormData("filename", "employees-details.pdf");
			//create the report in PDF format
			return new ResponseEntity<byte[]>
					(JasperExportManager.exportReportToPdf(empReport), headers, HttpStatus.OK);

		} catch(Exception e) {
			return new ResponseEntity<byte[]>(HttpStatus.INTERNAL_SERVER_ERROR);
		}
	}
}

Test WebClient

Follow below steps to generate the Jasper Report (Spring Boot Jasper Report PDF Example).

1. Run Spring Boot + Jasper Report Example by using mvn spring-boot run command.

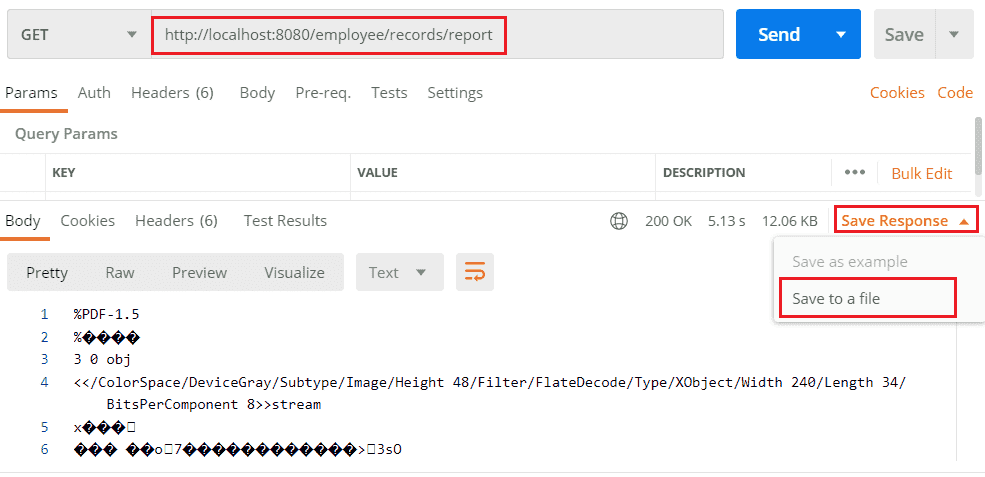

2. Open Postman use employees report rest endpoint http://localhost:8080/employee/records/report and click on Save Response -> Save to a file to save the file at your location.
3. It will generate the PDF file called employees-details.pdf at your selected location. Once you open it'll show the generated data.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot Jasper Report Example
