Overview

In this article, we'll explore how to publish and consume Json message in apache kafka.

Apache Kafka Tutorial :

Apache Kafka Architecture
Install Apache Kafka (Zookeeper+Broker) / Kafka Tool
Spring Boot Apache Kafka String Message Example
Spring Boot Apache Kafka JSON Message Example
Apache Kafka Interview Questions and Answers

Create Spring Boot Kafka Example

Let's get started on the project now.

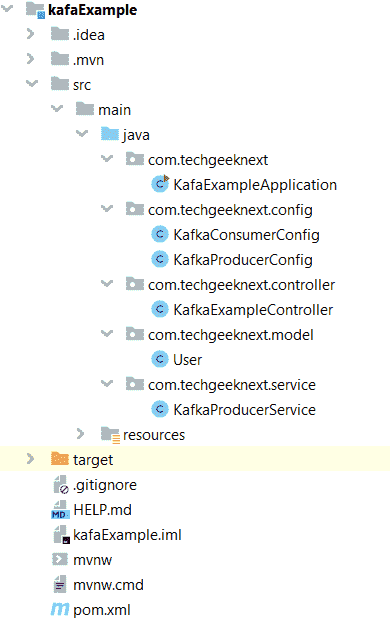

Project Structure

Kafka Server Port

Define kafka server port in application.properties as given below.

techgeeknext.kafka.bootstrap-servers: localhost:9092

Create Spring Boot Maven project

Define the pom.xml as follows- Add the spring-kafka dependency.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.9.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>kafaExample</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>kafaExample</name>
	<description>Spring Boot Kafka</description>
	<properties>
		<java.version>1.8</java.version>
	</properties>
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.kafka</groupId>
			<artifactId>spring-kafka</artifactId>
		</dependency>

	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Take a look at our suggested posts:

Apache Storm Tutorial

Spring Boot - Transaction Management

Spring Boot - JWT Authentication Example

Spring Boot - JWT + Angular 8 Authentication Example

Spring Boot - JWT + MYSQL Authentication Example

Spring Boot - Session Management using Redis

OAuth2.0 Tutorial

Spring Boot - Hazelcast

Spring Boot - JPA + REST + MYSQL Example

Java 15

Java 14

Java 8 Interview Questions and Answers

Angular 8 Spring Boot Example

Messages Producer

Define the Configuration Class to produce the messages.

package com.techgeeknext.config;

import com.techgeeknext.model.User;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.common.serialization.StringSerializer;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.kafka.core.DefaultKafkaProducerFactory;
import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.kafka.core.ProducerFactory;
import org.springframework.kafka.support.serializer.JsonSerializer;

import java.util.HashMap;
import java.util.Map;

@Configuration
public class KafkaProducerConfig {
    private final Logger LOG = LoggerFactory.getLogger(getClass());
    @Value("${techgeeknext.kafka.bootstrap-servers}")
    private String bootstrapServers;

    @Bean
    public ProducerFactory<String, User> userProducerFactory() {
        Map<String, Object> configProps = new HashMap<>();
        configProps.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
        configProps.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
        configProps.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, JsonSerializer.class.getName());
        return new DefaultKafkaProducerFactory<>(configProps);
    }

    @Bean
    public KafkaTemplate<String, User> userKafkaTemplate() {
        return new KafkaTemplate<>(userProducerFactory());
    }
}

In the above example, ProducerFactory is responsible for creating Kafka Producer instances. In producerConfigs(), we configure below properties:

BOOTSTRAP_SERVERS_CONFIG - Host and port on which Kafka is running.
KEY_SERIALIZER_CLASS_CONFIG - Serializer class to be used for the key.
VALUE_SERIALIZER_CLASS_CONFIG - Serializer class to be used for the value. We are using JsonSerializer for values. Will serialize the object of the model class.

Define the Service class to auto wire the Kafka Template object to publish the Json in techgeeknext-topic as shown.

package com.techgeeknext.service;

import com.techgeeknext.model.User;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.stereotype.Service;

@Service
public class KafkaProducerService {
    private final Logger LOG = LoggerFactory.getLogger(KafkaProducerService.class);
    @Autowired
    private KafkaTemplate<String, User> kafkaTemplate;

    String kafkaTopic = "techgeeknext-topic";

    public void send(User user) {
        LOG.info("Sending User Json Serializer : {}", user);
        kafkaTemplate.send(kafkaTopic, user);
    }
}

Now define controller class for publishing the Json Object through kafka topic.

package com.techgeeknext.controller;

import com.techgeeknext.model.User;
import com.techgeeknext.service.KafkaProducerService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping(value = "/techgeeknext-kafka/")
public class KafkaExampleController {

    @Autowired
    KafkaProducerService kafkaProducer;


    @PostMapping("/producer")
    public String sendMessage(@RequestBody User user)
    {
        kafkaProducer.send(user);
        return "Message sent successfully to the Kafka topic techgeeknext-topic";
    }

}

Message Consumer

Define Consumer configuration class to consume Json message.

package com.techgeeknext.config;

import java.util.HashMap;
import java.util.Map;

import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.common.serialization.StringDeserializer;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.kafka.annotation.EnableKafka;
import org.springframework.kafka.config.ConcurrentKafkaListenerContainerFactory;
import org.springframework.kafka.core.ConsumerFactory;
import org.springframework.kafka.core.DefaultKafkaConsumerFactory;
import org.springframework.kafka.support.serializer.JsonDeserializer;
import com.techgeeknext.model.User;

@EnableKafka
@Configuration
public class KafkaConsumerConfig {

    @Value("${techgeeknext.kafka.bootstrap-servers}")
    private String bootstrapServers;

    @Bean
    public ConsumerFactory<String, User> consumerFactory() {
        Map<String, Object> props = new HashMap<>();
        props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
        props.put(ConsumerConfig.GROUP_ID_CONFIG, "techgeeknext-group");
        return new DefaultKafkaConsumerFactory<>(props, new StringDeserializer(),
                new JsonDeserializer<>(User.class));
    }

    @Bean
    public ConcurrentKafkaListenerContainerFactory<String, User> kafkaListenerContainerFactory() {
        ConcurrentKafkaListenerContainerFactory<String, User>
                factory = new ConcurrentKafkaListenerContainerFactory<>();
        factory.setConsumerFactory(consumerFactory());
        return factory;
    }
}

Now, write a Listener method using @KafkaListener annotation to listen to the Json messages coming via techgeeknext-topic with techgeeknext-group.

package com.techgeeknext;

import com.techgeeknext.model.User;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.kafka.annotation.KafkaListener;

@SpringBootApplication
public class KafaExampleApplication {

    public static void main(String[] args) {
        SpringApplication.run(KafaExampleApplication.class, args);
    }

    @KafkaListener(topics = "techgeeknext-topic", groupId = "techgeeknext-group")
    public void listen(User user) {

        System.out.println("Received User information : " + user);
    }
}

Next start the Spring Boot Application by running spring-boot:run.
Start zookeeper : This Kafka installation comes with a built-in zookeeper. Zookeeper is mainly used to track the status of the nodes present in the Kafka cluster and to keep track of Kafka topics, messages, etc.

Refer Install Apache Kafka to know the steps to install Zookeeper and Kafka.
```
.\bin\windows\zookeeper-server-start.bat .\config\zookeeper.properties
```
Start the Apache Kafka : Use below command to start the Apache Kafka
```
.\bin\windows\kafka-server-start.bat .\config\server.properties
```

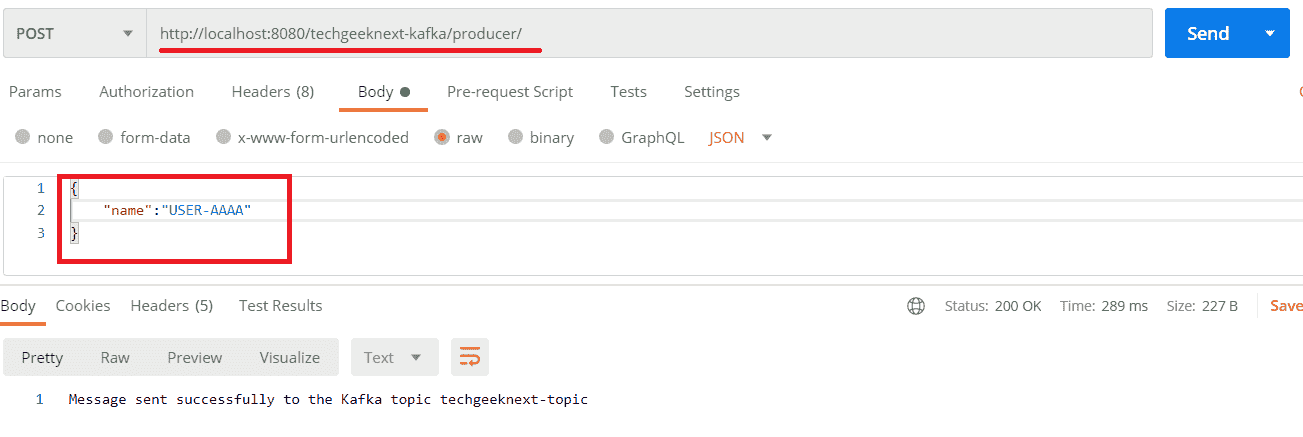

Use postman to post/send the User object to apache kafka as follows- http://localhost:8080/techgeeknext-kafka/producer/

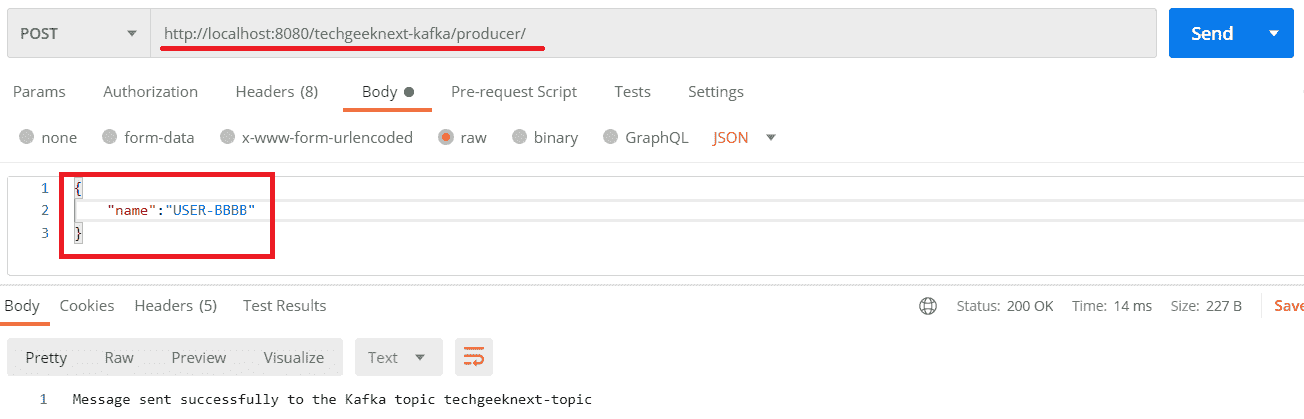

Again send other User object with different User Name- http://localhost:8080/techgeeknext-kafka/producer/
Above 2 post endpoints will trigger the json message to be sent to the techgeeknext-topic with techgeeknext-group.

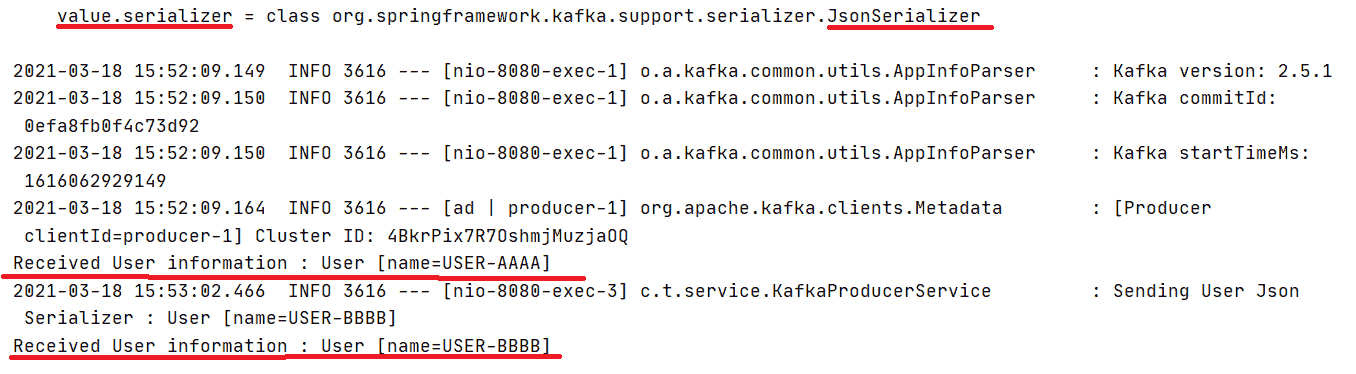

On the Spring Boot console, we can see consumer started and User Json messages is received by the consumer.

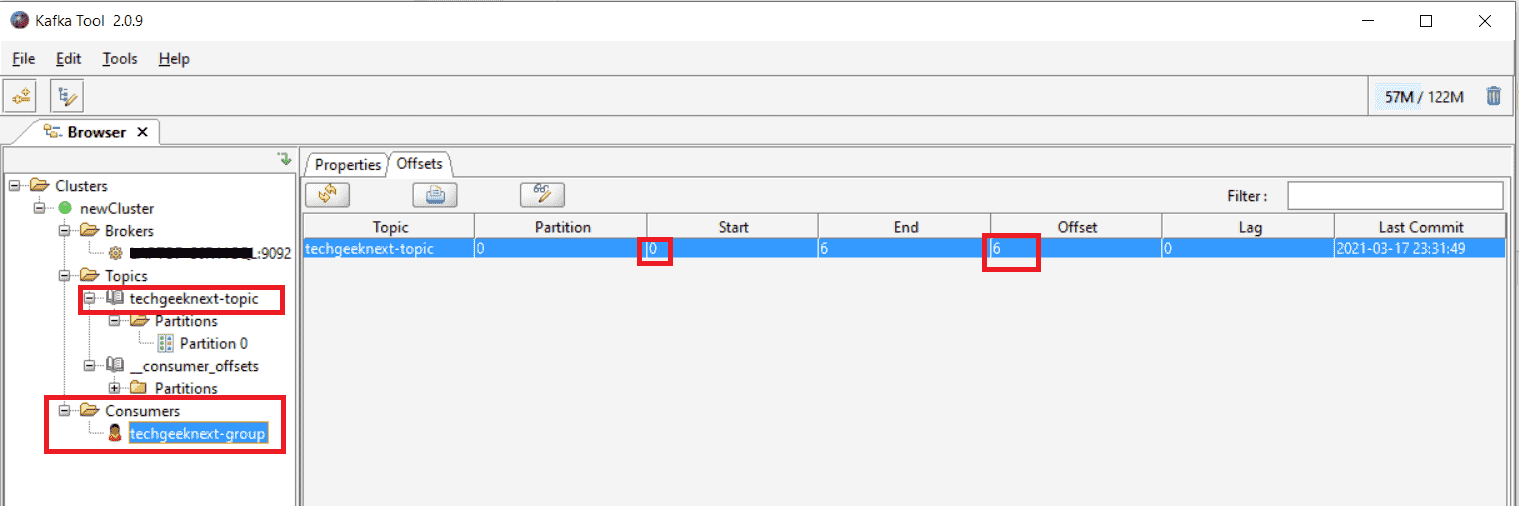

Also, you can verify that techgeeknext-topic with techgeeknext-group has been created in Kafka Tool with other things like partition,consumer, producer etc.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot Apache Kafka Json Message Example
