OAuth2 - Google Authorization Server

In previous article, we learned about Basic Authentication , Digest Authentication.In this tutorial, will learn how to configure and use an external Authorization Server.

Maven Dependencies

In addition to the Spring Securities dependencies, need to add spring-boot-starter-oauth2-client and spring-cloud-starter-oauth2

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.5.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>security-google-oauth2</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>security-google-oauth2</name>
	<description>Google Authorization project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Hoxton.SR1</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-oauth2-client</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-oauth2</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-thymeleaf</artifactId>
		</dependency>

	</dependencies>



	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Google OAuth Client Registration

  1. Goto Google Cloud Console, sign in with gmail account credential to register with Google OAuth Server.

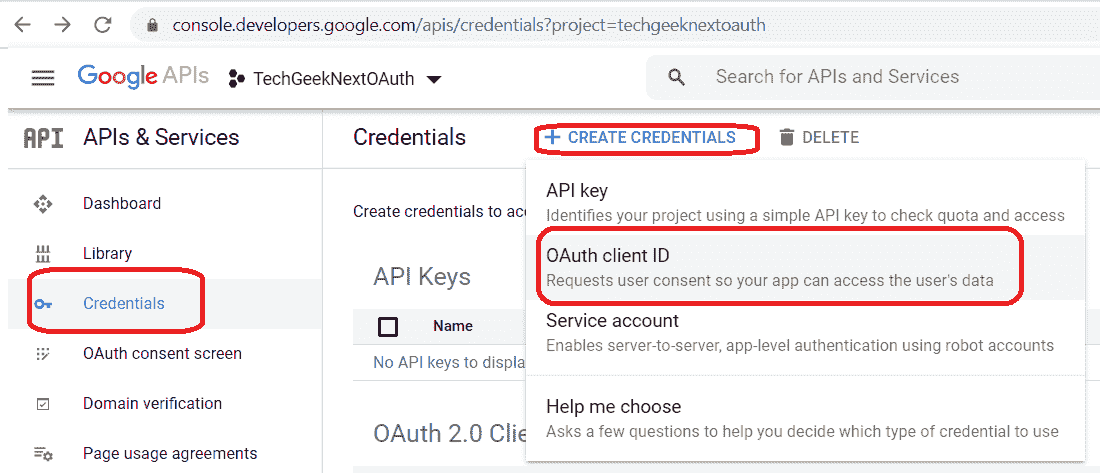

  2. Click on Credentials link -> Click on Create Credentials -> Click on OAuth client ID

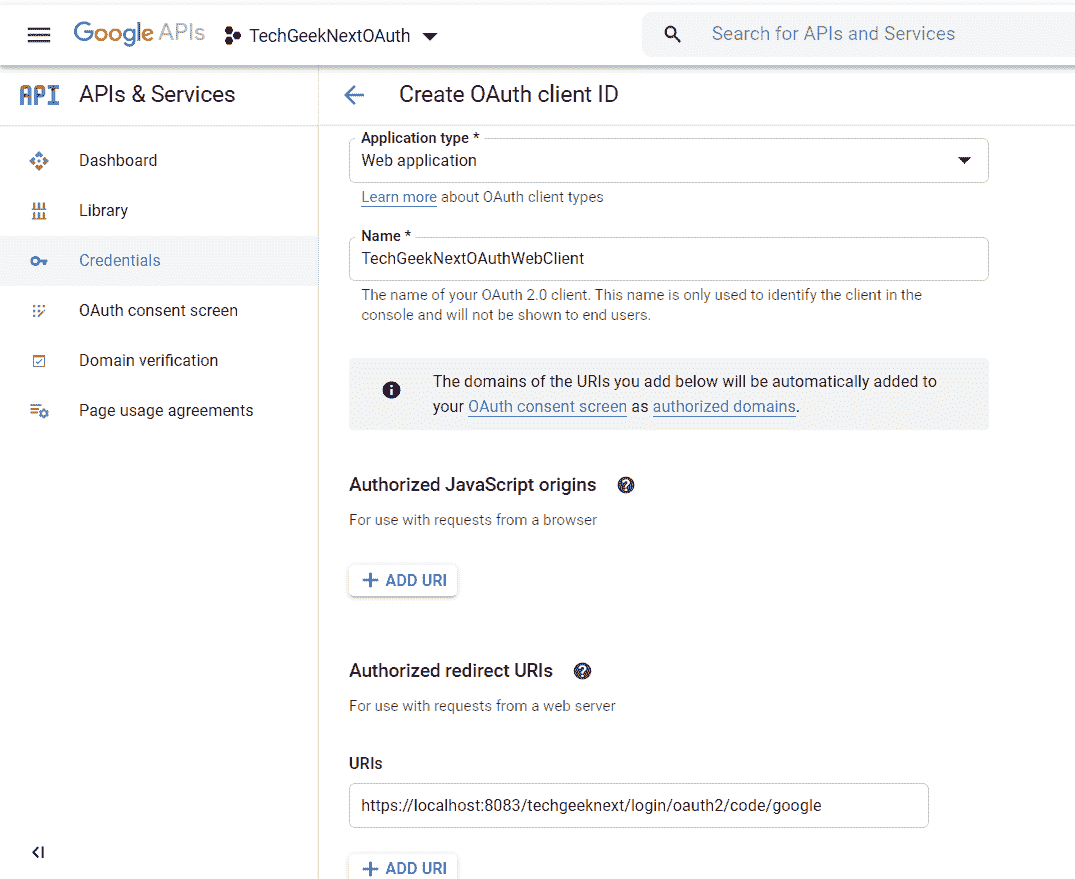

  3. Now, select Application type as "Web Application", and redirect uri as https://localhost:8083/techgeeknext/login/oauth2/code/google and click on Create button.

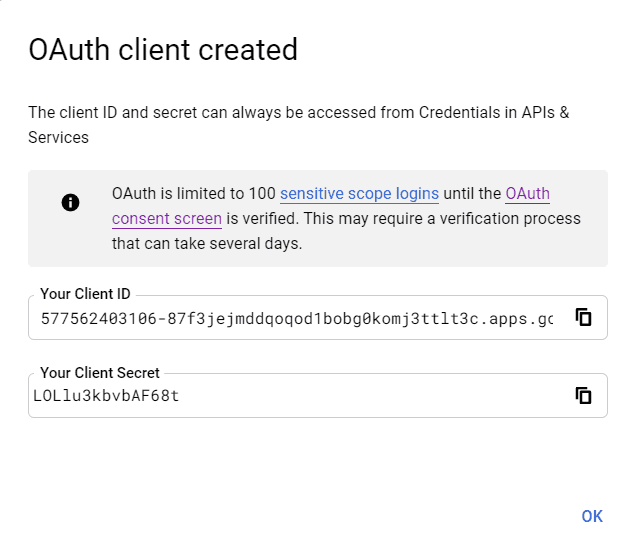

  4. Once it's created, it will generate client id and client secret for the registered web application.

Configure Google OAuth2 Client Properties

Now, add the above generated client id and client secret in application.yml file with database and security properties.

logging:
  level:
    org.springframework.security: DEBUG

server:
  port: 8083
  servlet:
    context-path: /techgeeknext
    session:
      cookie:
        path: /techgeeknext
  ssl:
    key-store-password: techgeeknext123
    key-store: classpath:securitykeystore.p12
    key-store-type: PKCS12
    key-alias: techgeeknext-alias


spring:
  security:
    oauth2:
      client:
        registration:
          google:
            client-id: 577562403106-87f3jejmddqoqod1bobg0komj3ttlt3c.apps.googleusercontent.com
            client-secret: LOLlu3kbvbAF68t
            scope: profile
            client-name: TechGeekNextOAuthWebClient
  datasource:
    url: jdbc:mysql://localhost/SecuritySchema?createDatabaseIfNotExist=true&autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: root
    platform: mysql
    initialization-mode: always

  jpa:
    hibernate:
      ddl-auto: update

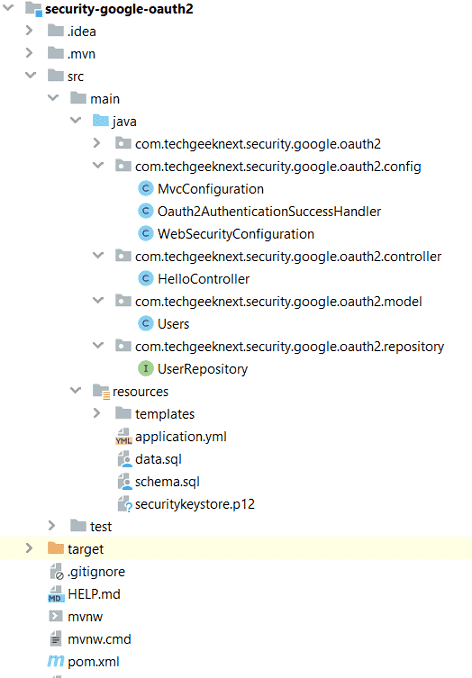

Project Structure:



Enable OAuth2 Client Configuration

Now, create configuration class to enable the OAuth2 client for web security.

package com.techgeeknext.security.google.oauth2.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.Order;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.factory.PasswordEncoderFactories;
import org.springframework.security.crypto.password.DelegatingPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableOAuth2Client;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;

import javax.sql.DataSource;

@Configuration
@Order(1)
@EnableOAuth2Client
public class WebSecurityConfiguration extends WebSecurityConfigurerAdapter {

    @Autowired
    @Qualifier("oauth2authSuccessHandler")
    private AuthenticationSuccessHandler oauth2authSuccessHandler;

    protected void configure(HttpSecurity http) throws Exception {
        http
                .authorizeRequests()
                .antMatchers("/login").permitAll()
                .anyRequest().authenticated()
                .and()
                .formLogin().loginPage("/login")
                .and().csrf().disable()
                .logout().logoutUrl("/logout").logoutSuccessUrl("/login")
                .and().oauth2Login().loginPage("/login")
                .successHandler(oauth2authSuccessHandler);

        http.headers().frameOptions().disable();
    }

    @Autowired
    private DataSource dataSource;


    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.jdbcAuthentication()
                .dataSource(dataSource).passwordEncoder(getPasswordEncoder());
    }

    @Bean
    public PasswordEncoder getPasswordEncoder() {
        DelegatingPasswordEncoder encoder =  (DelegatingPasswordEncoder)PasswordEncoderFactories.createDelegatingPasswordEncoder();
        return encoder;
    }
}

The @EnableOAuth2Client enables for an OAuth2 client configuration in Spring Web Security application.

The oauth2Login() method was implemented in Spring 5.0. The oauth2Login() method configures support for authentication using the OAuth 2.0 or OpenID Connect 1.0 provider. The default configuration will auto-generate the login page on the /login URL.

Authentication Success Handler

We can manage post-authentication activity by using below methods:

  1. defaultSuccessUrl() and failureUrl(): It redirect the user to a specified URL.
  2. successHandler() and failureHandler(): To execute custom logic after the user authentication successful process.

If you notice, we used SuccessHandler and provided custom logic to store user information with dummy password (pass123) in the database if it did not exist.

package com.techgeeknext.security.google.oauth2.config;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.Authentication;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.client.OAuth2AuthorizedClientService;
import org.springframework.security.oauth2.client.authentication.OAuth2AuthenticationToken;
import org.springframework.security.web.DefaultRedirectStrategy;
import org.springframework.security.web.RedirectStrategy;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.stereotype.Component;

import com.techgeeknext.security.google.oauth2.model.Users;
import com.techgeeknext.security.google.oauth2.repository.UserRepository;

@Component("oauth2authSuccessHandler")
public class Oauth2AuthenticationSuccessHandler implements AuthenticationSuccessHandler {

	private RedirectStrategy redirectStrategy = new DefaultRedirectStrategy();;
	@Autowired
	private OAuth2AuthorizedClientService authorizedClientService;
	@Autowired
	private UserRepository userRepository;

	@Autowired
	private PasswordEncoder encoder;


	public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response,
										Authentication authentication) throws IOException, ServletException {
		OAuth2AuthenticationToken authenticationToken = (OAuth2AuthenticationToken) authentication;
		String firstName = null;
		if (userRepository.findByUsername(authentication.getName()) == null) {
			firstName = authenticationToken.getPrincipal().getAttributes().get("given_name").toString();
			String email = authenticationToken.getPrincipal().getAttributes().get("email").toString();
			Users user = new Users(email, firstName, " ", email, encoder.encode("pass123"), true);
			userRepository.save(user);
		}
		this.redirectStrategy.sendRedirect(request, response,firstName!=null?"/hello?name="+firstName:"/hello");
	}
}

Login Page

Provide the link to Authorization server oauth2/authorization/google in the login page.

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">

<head>
    <meta charset="UTF-8"/>
    <title>OAuth2 Google Example</title>
</head>

<body>
<h4>Sign-in to your Google Account:</h4>
<form class="form-signin" th:action="@{/login}" method="post">
    <button
     style="background-color: #7fbefa;"
     onclick="location.href='oauth2/authorization/google'"
     type="button">
     Login with Google
    </button>
</form>
</body>
</html>
Take a look at our suggested posts:
Spring Boot - Transaction Management
Spring Boot - JWT Introduction
Spring Boot - JWT Authentication Example
Spring Boot - JWT + Angular 8 Authentication Example
Spring Boot - JWT + MYSQL Authentication Example
Spring Boot - Session Management using Redis
OAuth2.0 Tutorial
Spring Boot - Hazelcast
Spring Boot - JPA + REST + MYSQL Example
Spring Boot Apache Kafka Example
Java 15
Java 14
Java 8 Interview Questions and Answers
Angular 8 Spring Boot Example

REST Controller:

Let's create simple hello rest endpoint for the testing purpose .
package com.techgeeknext.security.google.oauth2.controller;

import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {

	@GetMapping("/hello")
	public String sayHello(Model model, @RequestParam(defaultValue = "TechGeekUser" ,required = false)String name) {
		model.addAttribute("name", name);
		return "Hello "+name;
	}
}

Testing OAuth2 through Google Authorization Server

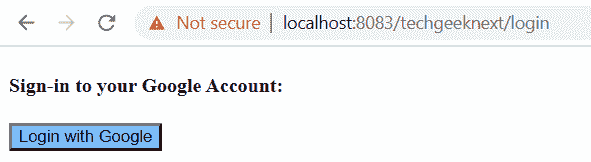

  1. Access the url https://localhost:8083/techgeeknext/hello, so that it'll redirect to login page.

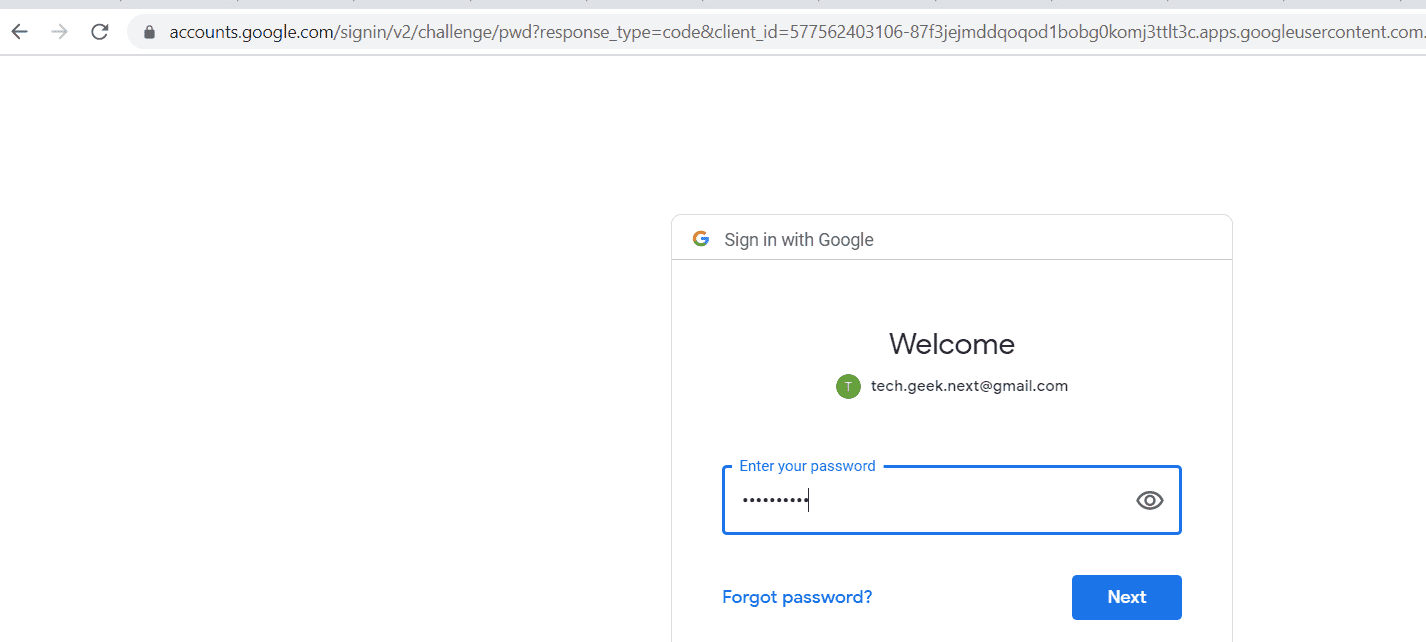

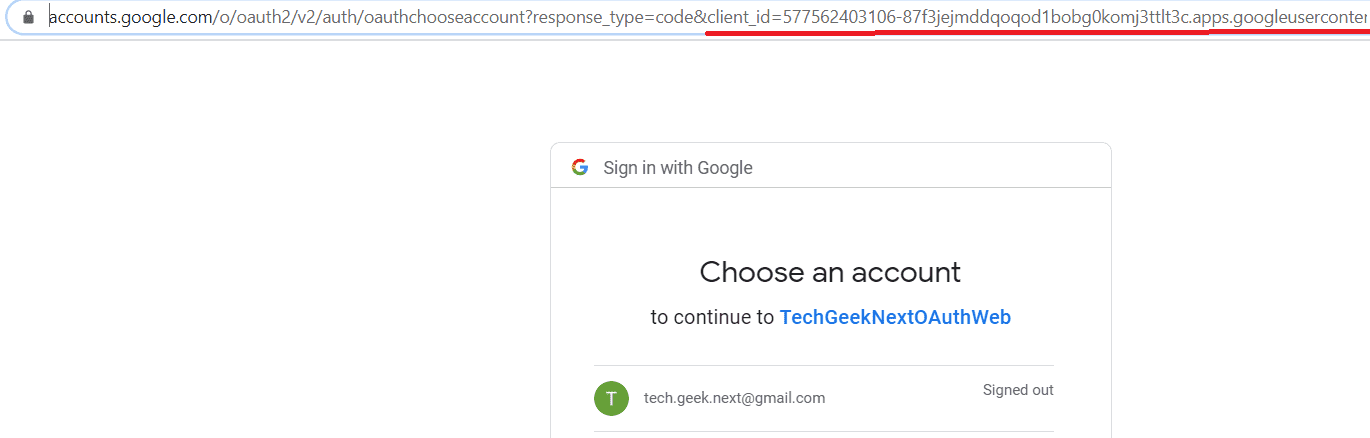

  2. Now, click on Login with Google, it will redirect the page to select your google account, and if you notice it has client-id as the part of the url.
  3. Now, provide your credential and proceed.

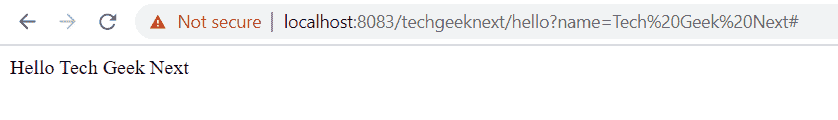

  4. Once login is successful, we can see hello rest end point with it's response, which displays logged in user name.

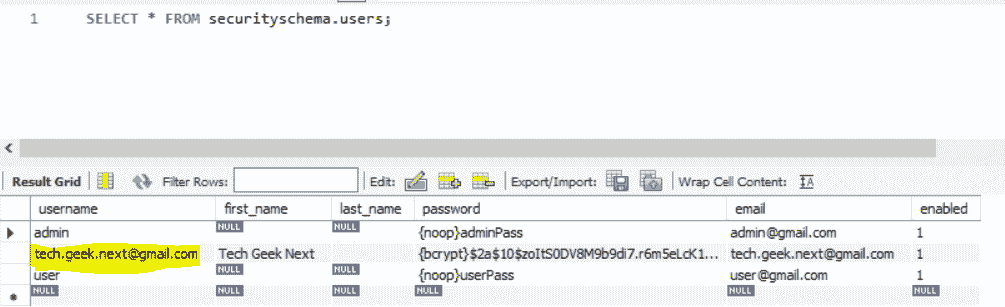

  5. Also, you can notice that the user which doesn't exist in database, we store those information in our database from oauth2authSuccessHandler.

Download Source Code

The full source code for this article can be found on below.
Download it here - OAuth2 - Google Authorization Server
